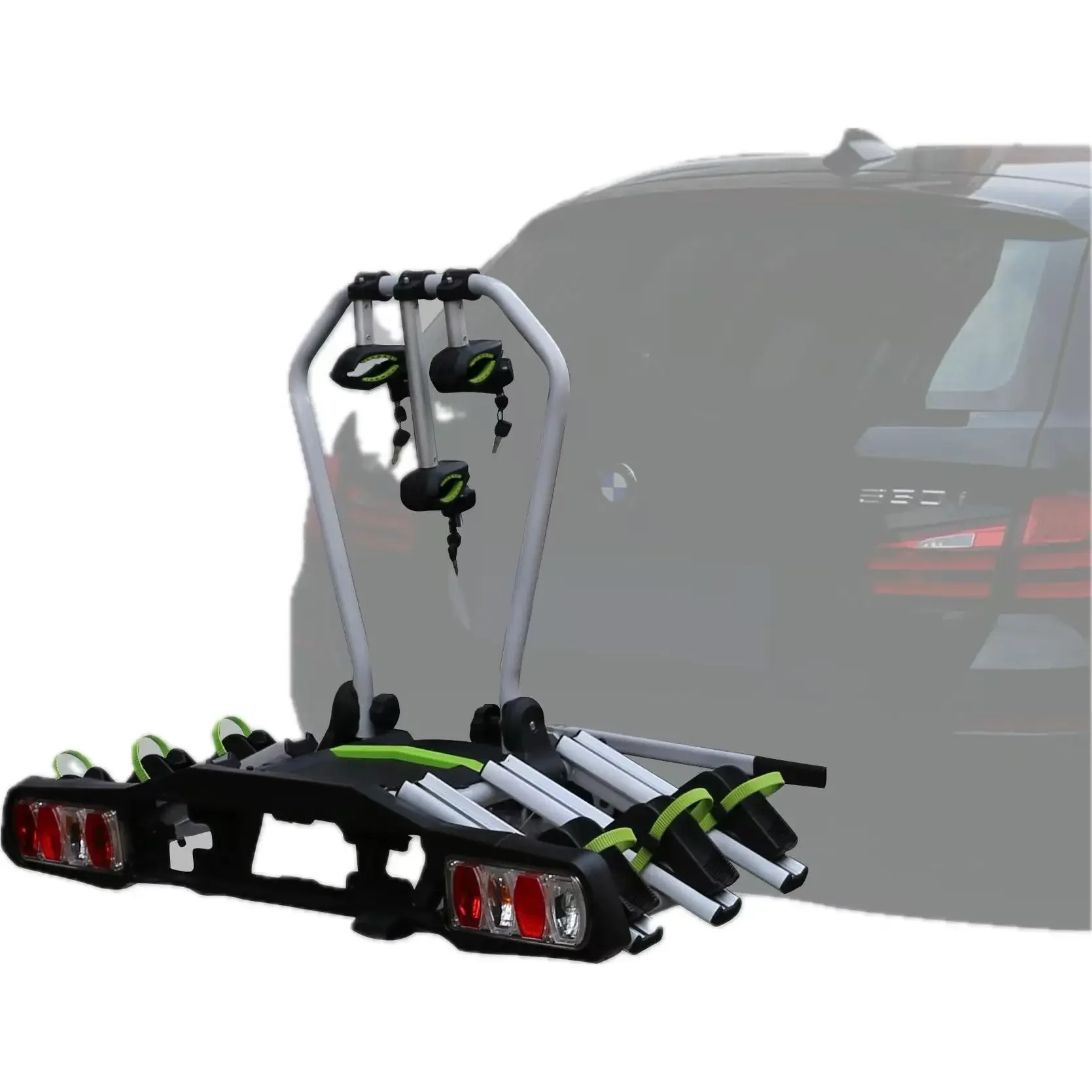

Flagship 3-Bike Towbar Platform Carrier with Foot-Pedal Tilt (Model: TB006D3)
The TB006D3 is a full-feature flagship towbar platform carrier engineered for high-tier consumer markets demanding ultimate mechanical convenience, integrating a space-saving foldable architecture with elite physical security.
-
- Shim-Tuning Coupling:Heavy-duty casted coupler engineered with micro-adjustable shim technology to establish a dead-lock wrap and eradicate sway.
- Foot-Pedal Remote Tilt:Smart, hands-free foot pedal release tilts the entire loaded platform downward for effortless and immediate trunk access.
- Space-Saving Foldable Frame:Intelligent folding chassis joints allow the heavy-duty framework to collapse entirely flat for incredibly compact storage.
- Anti-Theft Dual Security:Built-in dual key-locks securely anchor the main frame base to the tow ball and individual bicycle arms to the carrier.
- 13-Pin Integrated Matrix:Pre-wired classic 13-pin trailer plug connector powers full-signal rear braking, signaling, and turn indicator light arrays.
Key Features & Engineering Advantages
1. Flagship 3-Bike Towbar Platform with Certified ECM Structural Integrity
Engineered to fulfill premium global distribution networks and elite automotive accessory supply chains. This flagship 3-bike platform carrier utilizes an upgraded high-stiffness structural layout supporting a certified maximum loading threshold of 45 kgs (100 lbs). Verified under official European ECM road safety audits, international procurement managers can deploy this luxury model to capture top-tier outdoor consumer segments demanding heavy-duty multi-bike transit stability and flawless mechanical execution.

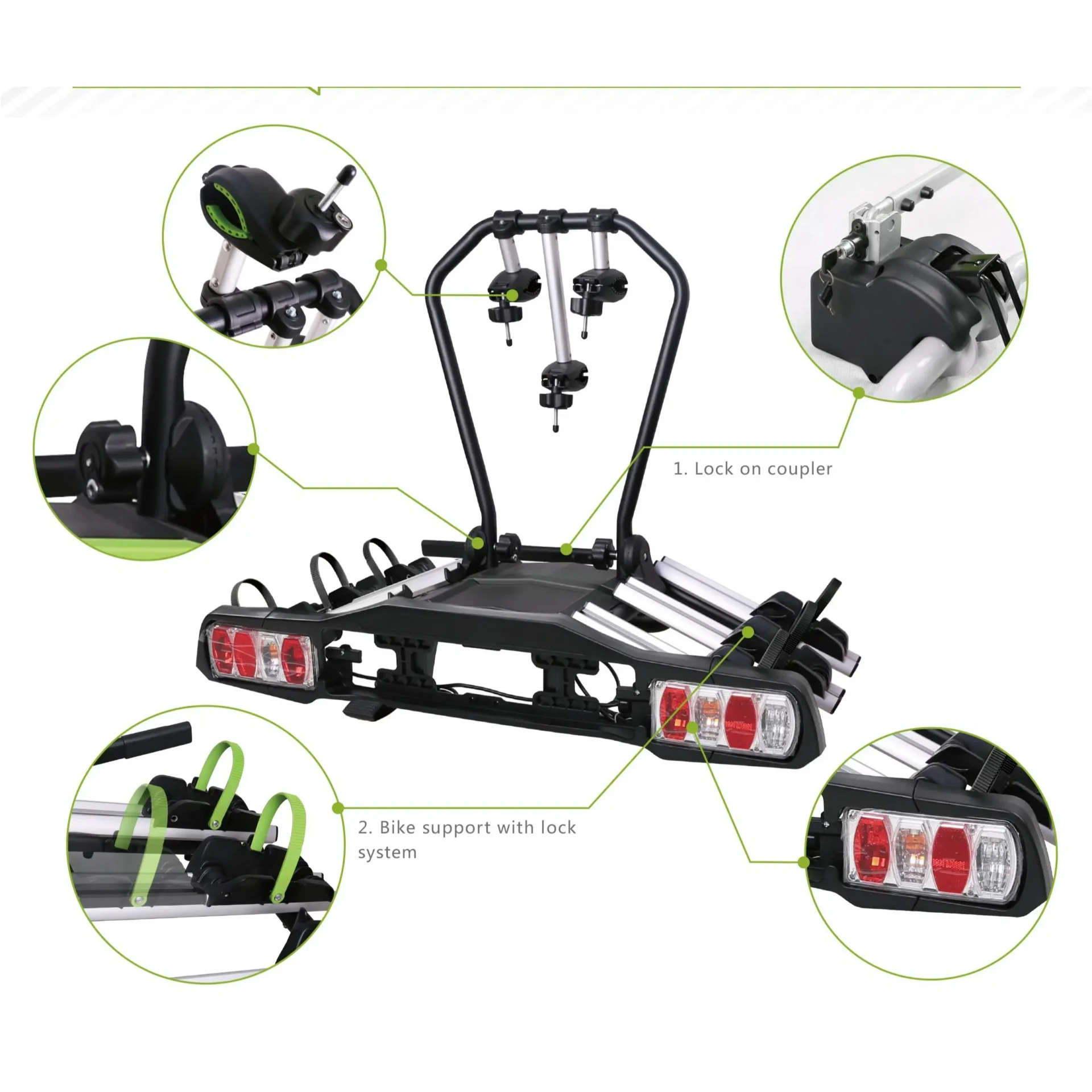

2. Advanced Dual-Locking Safeguard with 13-Pin Intelligent Light Matrix
Eradicating security vulnerabilities and vehicle transit risks, our flagship model introduces a comprehensive dual-locking mechanical architecture: the integrated lock on coupler tightly secures the entire chassis to standard 2-inch hitch balls, while individual bike supports with an advanced lock system secure each bicycle firmly to the frame arm housing. This multi-tier protection matrix securely clamps round bicycle top-tubes (30-50mm) and wheel trays spanning up to a 115cm maximum wheelbase (supporting 22-29″ wheels and 20-65mm tire widths). Complementing this ultimate asset safety is an optimized foot-pedal tilting release lever and a standard 13-pin trailer connector, supplying intelligent continuous power directly to the integrated high-visibility rear signal and taillight arrays for flawless highway visibility.
Technical Specifications Matrix
| Industrial Metric | Technical Specification Parameters |
| Product Reference Designation | TB006D3 Flagship Series |
| Carrier Configuration Style | Premium Towbar Ball-Mounted Platform |
| Structural Frame Material | High-Stiffness Steel + Alloy Hybrid Foldable Framework |
| Maximum Bike Capacity | 3 Bicycles |
| Maximum Certified Load Capacity | 45 Kgs / 99.2 lbs |
| Ball Coupling Mechanism | Heavy Casted Coupler with Micro-Adjustable Shim-Tuning Tech |
| Compatible Hitch Ball Size | Standard 2-Inch (Ø 50.8 mm) Towbar Ball |
| Electrical System Interface | Integrated 13-Pin Trailer Wiring Connector |
| Taillight Array Configuration | Integrated Multi-Function Rear Signal & Braking Light Matrix |
| Anti-Theft Security Hardware | Full Dual-Locking System: Carrier-to-Car & Bike-to-Carrier |
| Mechanical Tilting Operation | Convenient Foot-Pedal Tilting Mechanism |
| Space-Saving Storage Capability | Foldable Frame Structure When Unladen |
| Compatible Bicycle Wheel Size | Universal Alignment Fitting from 22″ to 29″ |
| Compatible Bicycle Tire Width | Precision Wheel Channels Accommodating 20 mm to 65 mm |
| Maximum Allowable Wheelbase | High-Clearance Track Balancing Wheelbases Up to 1150 mm (115 cm) |
| Top-Tube Diameter Capacity | Securely Grips Round Bicycle Top-Tubes from Ø 30 mm to 50 mm |
| Global Market Compliance | Official European ECM Quality Certificate Approved & Verified |
