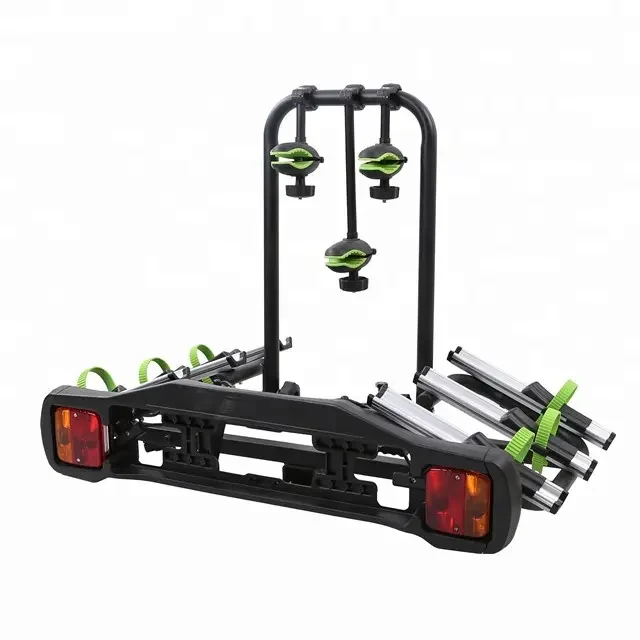

Economy 3-Bike Towbar Platform Carrier (Model: TB005D3)
The TB005D3 is an entry-level, budget-optimized towbar platform carrier engineered for high-volume retail supply chains, allowing automotive accessory wholesalers to offer a highly cost-effective fleet asset that satisfies basic transit demands.
-
- Fleet 3-Bike Capacity:Structurally reinforced layout rated for a maximum loading threshold of 45 kg (100 lbs) to haul 3 standard bicycles safely.
- Threaded Bolt Coupling:Heavy-duty threaded bolt clamping system provides a secure, tool-tightened mechanical lock over standard hitch towbar balls.
- 7-Pin Electrical Interface:Integrated classic 7-pin trailer wiring connector powers basic rear highway signaling and brake light compliance.
- Pivot Hinge Tilting:Smart mechanical rearward tilting system provides smart, tool-free access to the vehicle trunk even when fully loaded.
- Weatherproof Protection:Industrial all-black protective coating over a high-tensile steel framework offers long-lasting, climate-resistant hardware duration.
Key Features & Engineering Advantages
1. Economy 3-Bike Towbar Platform with Certified ECM Road Safety
Formulated to fulfill high-volume international retail supply chains and volume-driven automotive lifestyle distribution hubs. This economy 3-bike platform carrier utilizes a high-tensile structural carbon steel layout rated for a maximum loading threshold of 45 kgs (100 lbs), securing three standard consumer bicycles with robust alignment. Verified under European ECM road safety protocols, international procurement managers can import this cost-efficient variant to capture highly competitive market demographics looking for a reliable, no-nonsense towing solution.

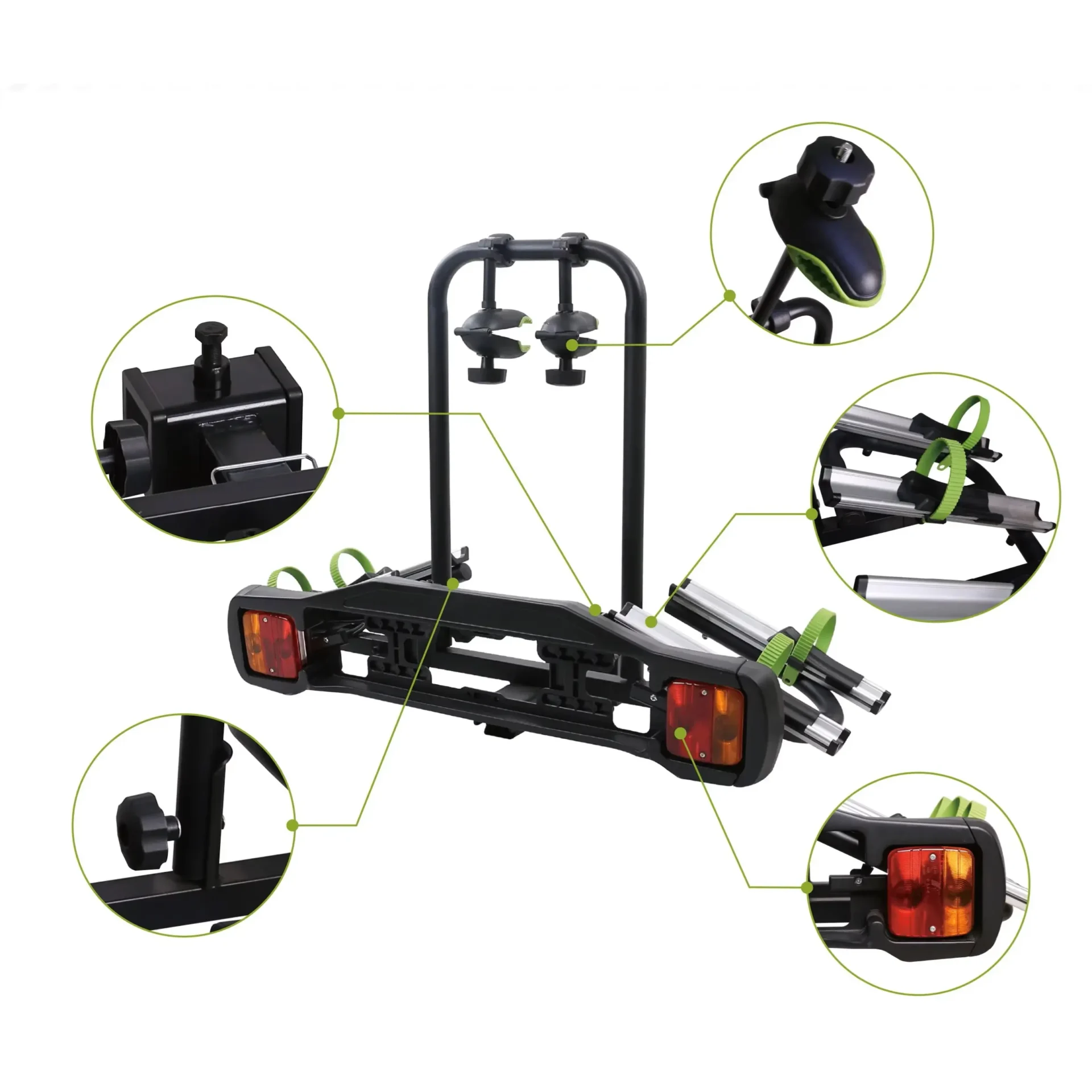

2. Heavy-Duty Threaded Bolt Clamping Interface & Rigid All-Steel Frame Architecture
Eradicating transit road vibration and maximizing towing safety across high-speed highway travel, the TB005D3 deploys a heavy-duty threaded bolt clamping system. This classic mechanical configuration requires tool-assisted tightening of a massive structural locking screw, generating immense downward mechanical torque to securely freeze the coupling socket over standard 2-inch hitch towbar balls. Bicycles are anchored via standard non-locking frame cradles wrapped with premium weather-resistant black pads (fitting round 30-50mm frames) and wheel channels supporting up to a 115cm maximum wheelbase (with 22-29″ wheels and 20-65mm tire widths), rounded out by a manual rear tilting system and an integrated 7-pin electrical plug connection for uncompromised highway visibility.
Technical Specifications Matrix
| Industrial Metric | Technical Specification Parameters |
| Product Reference Designation | TB005D3 Economy Fleet Variant |
| Carrier Configuration Style | Towbar Ball-Mounted Platform (Economy) |
| Structural Frame Material | Weather-Resistant Carbon Steel Framework |
| Maximum Bike Capacity | 3 Bicycles |
| Maximum Certified Load Capacity | 45 Kgs / 99.2 lbs |
| Ball Coupling Mechanism | Heavy-Duty Threaded Bolt Clamping System (Tool-Tightened) |
| Compatible Hitch Ball Size | Standard 2-Inch (Ø 50.8 mm) Towbar Ball |
| Electrical System Interface | Integrated 7-Pin Trailer Wiring Connector |
| Anti-Theft Security Hardware | Non-Locking Base & Non-Locking Frame Cradles |
| Mechanical Tilting Operation | Rearward Pivot Hinge Tilting System |
| Hardware Cushion Color Trim | Standard All-Black Protective Material |
| Compatible Bicycle Wheel Size | Universal Alignment Fitting from 22″ to 29″ |
| Compatible Bicycle Tire Width | Precision Wheel Channels Accommodating 20 mm to 65 mm |
| Maximum Allowable Wheelbase | High-Clearance Track Balancing Wheelbases Up to 1150 mm (115 cm) |
| Top-Tube Diameter Capacity | Securely Grips Round Bicycle Top-Tubes from Ø 30 mm to 50 mm |
| Global Market Compliance | Official European ECM Quality Certificate Approved & Verified |
