Premium Anodized Roof-Mounted Upright Bicycle Carrier (Model: BC001F)

The BC001F is a commercial-grade, roof-mounted upright bicycle carrier engineered for streamlined top-vehicle transit, boasting a certified 15kg structural weight threshold to provide international automotive accessory wholesalers with a high-clearance, corrosion-resistant asset for competitive retail distribution.

- Premium Anodized Aluminum:Structural 1380mm linear chassis track protected with a natural anodized layer to withstand extreme weather climates.
- Integrated Frame Lock:Features an advanced security clamp armed with an integrated key locking assembly to anchor the bicycle firmly to the frame rack.
- Universal Bar Mounting:Shipped with standard dual hardware fitting T-slots and heavy-duty U-screws clamping wrapping load bars up to 80mm wide.
- Precision Grip Geometry:Adjustable frame clamp secures circular down-tubes from 25–50mm and specialized oval down-tubes precisely sized in 30x60mm.
- Wide Wheel Channels:High-efficiency tracking trays with precision wheel channels accommodating wide tire profiles up to 55mm and 116cm wheelbases.

Key Features & Engineering Advantages

1. Natural Anodized Silver Aluminum Extrusion with Certified ECM Safety

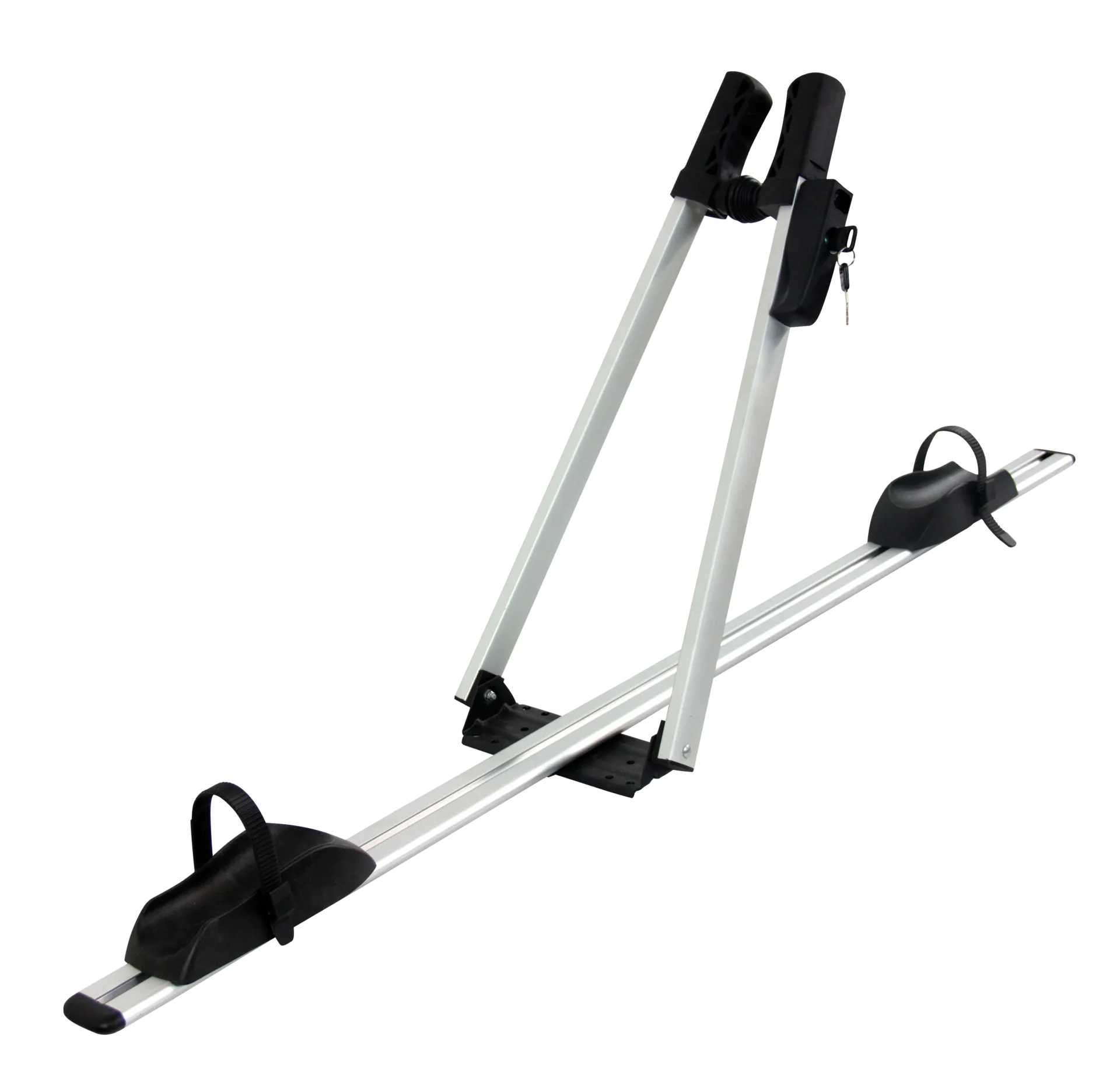

Standalone natural anodized silver aluminum roof mounted bicycle carrier rack model BC001F
Engineered to fulfill premium international e-commerce portfolios and elite tier automotive accessory distribution hubs. The BC001F elevates commercial expectations by shaping entry-level utilities into an architectural-grade structural aluminum extrusion coated with a durable natural anodized barrier layer. Verified under official European ECM road safety protocols, this silver metallic chassis resists dynamic load shifting and surface oxidization from aggressive marine air or roadside winter de-icing salts flawlessly.

2. Seamless Aerodynamic Integration Over Crossbar Systems

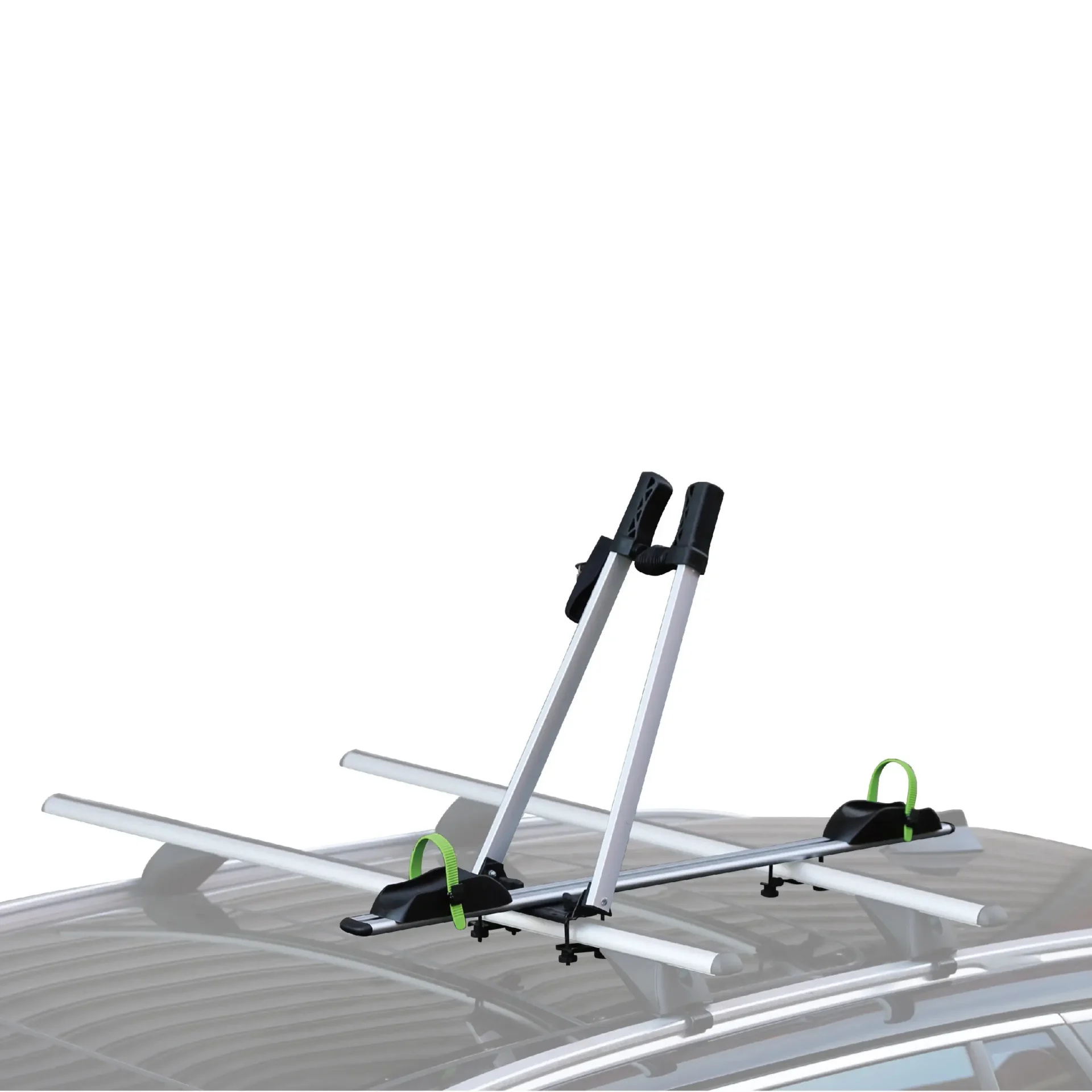

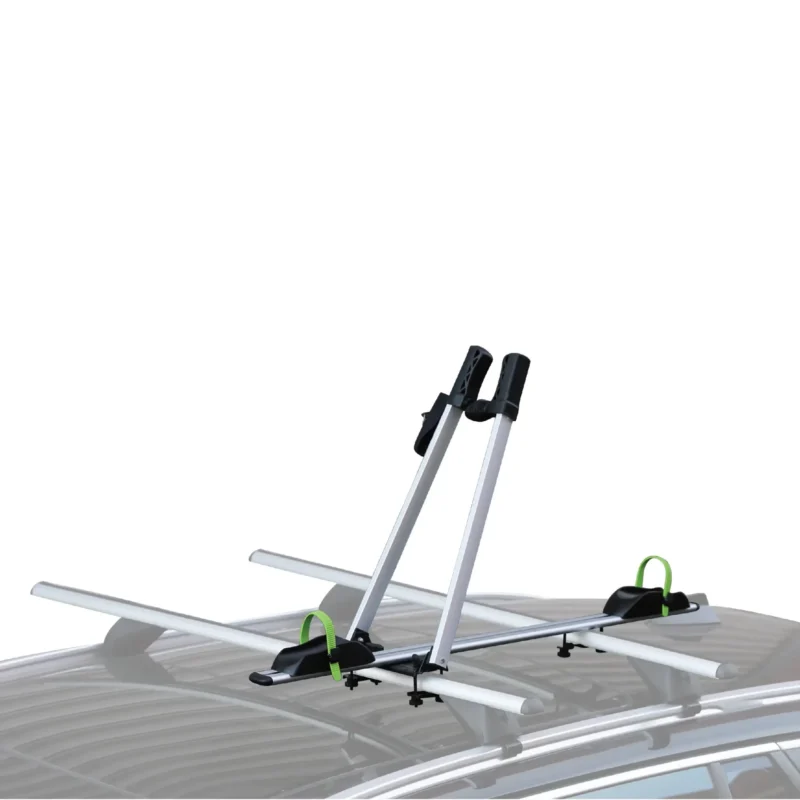

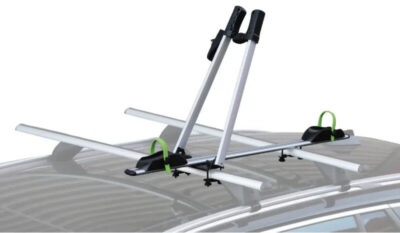

Empty aluminum roof bike carrier rack BC001F installed securely on vehicle roof crossbars
Eradicating structural wind vibration and excessive highway drag requires absolute sleek, low-profile vehicle nesting. When fixed empty on integrated roof load bars, the BC001F acts as an aerodynamic extension of the vehicle bodywork. The reinforced structural chassis resists vertical bending moments and side wind gusts, providing an exceptionally stable platform ready to receive premium bicycle frame sizes.

3. Universal Hard-Locking Jaws & Multi-Size Cargo Adaptation Kit

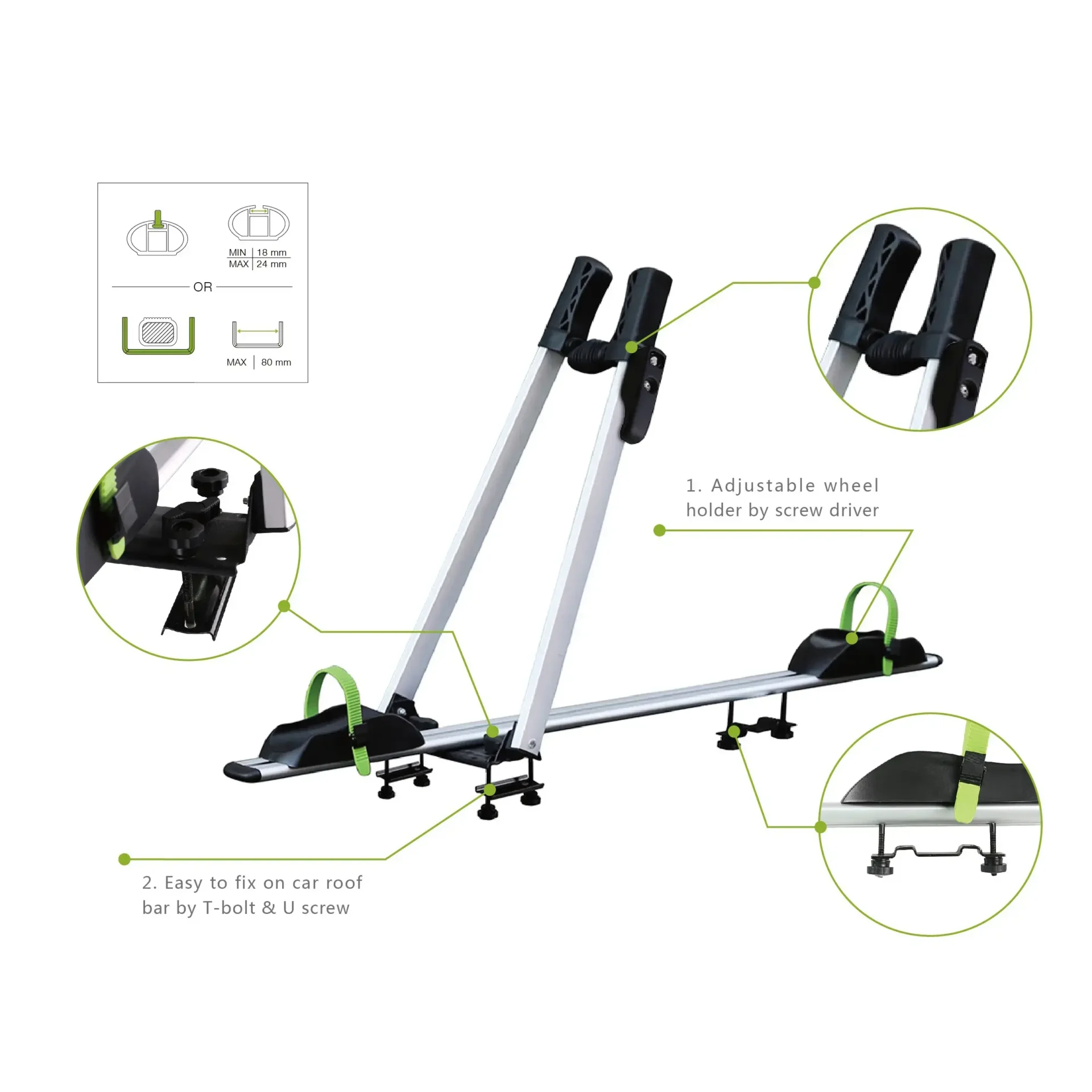

Close up detail of adjustable wheel holders by screwdriver and T-bolt U-screw fitting hardware
Maximum fleet distribution versatility requires cross-platform technical adaptation. The BC001F integrates an adjustable wheel holder by screwdriver, paired with a heavy-duty frame-gripping arm featuring an integrated anti-theft key lock to secure bikes firmly onto the carrier. The underlying tracking matrix smoothly secures wheelbase lengths up to 1150mm (115cm), wheel diameters spanning 22″ to 29″, and tire sizes from 20mm to 65mm. Simultaneously, the base introduces total installation protection, utilizing universal T-bolts engineered for inner slide tracks (Min 18x24mm) alongside high-tensile U-screws built to wrap over thick bars (Max 80mm wide) seamlessly without tools.

Technical Specifications Matrix

Industrial Metric	Technical Specification Parameters
Product Reference Designation	BC001F Premium Anodized Series
Carrier Configuration Style	Roof-Mounted Top Upright Bicycle Carrier
Primary Material Architecture	High-Tensile Structural Extruded Aluminum Alloy
Surface Protection Process	Premium Natural Anodise Finish Coating
Anti-Theft Asset Security	Integrated Key Locking Assembly (Bikes Locks to Carrier)
Maximum Bike Capacity	Secure Accommodation for 1 Bicycle per Unit
Maximum Certified Load Capacity	15 Kgs / 33.07 lbs Certified Working Load Threshold
T-Slot Hardware Compatibility	Minimum 18 mm x 24 mm Inner Tracks
U-Screw Clamp Fitting Width	Maximum Up to 80 mm Wide Load Bars
Overall Structural Chassis Length	High-Clearance 1320 mm (132 cm) Linear Track
Compatible Bicycle Wheel Size	Broad Universal Alignment Fitting 22″ to 29″ Wheels
Compatible Bicycle Tire Width	Precision Wheel Channels Accommodating 20 mm to 65 mm
Maximum Allowable Wheelbase	Fits Wheelbase Lengths Up to 1150 mm (115 cm)
Circular Down-Tube Diameter	Fits Profiles from Minimum 28 mm to Maximum 50 mm
Oval Down-Tube Cross-Section	Fits Profiles Specifically Ranging in 30 mm x 60 mm
International Market Compliance	Official European ECM Quality Certificate Approved
