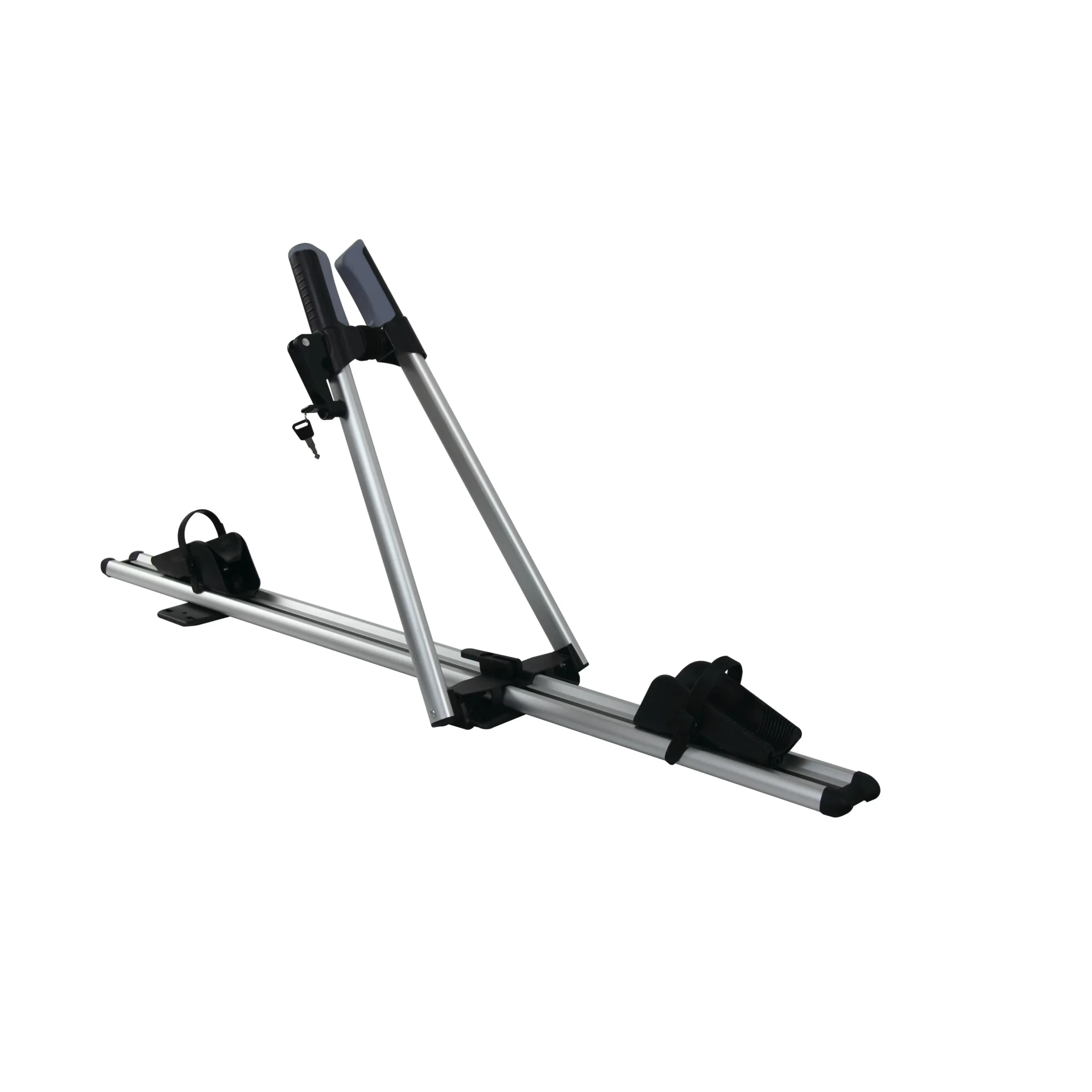

Premium Dual-Lock Roof-Mounted Upright Bicycle Carrier (Model: BC001E)
The BC001E is a flagship grade, roof-mounted upright bicycle carrier engineered for high-security top-vehicle transit, boasting a certified 15kg structural load threshold to provide international automotive accessory wholesalers and B2B procurement networks with an elite, weather-resistant asset for professional retail distribution.
-

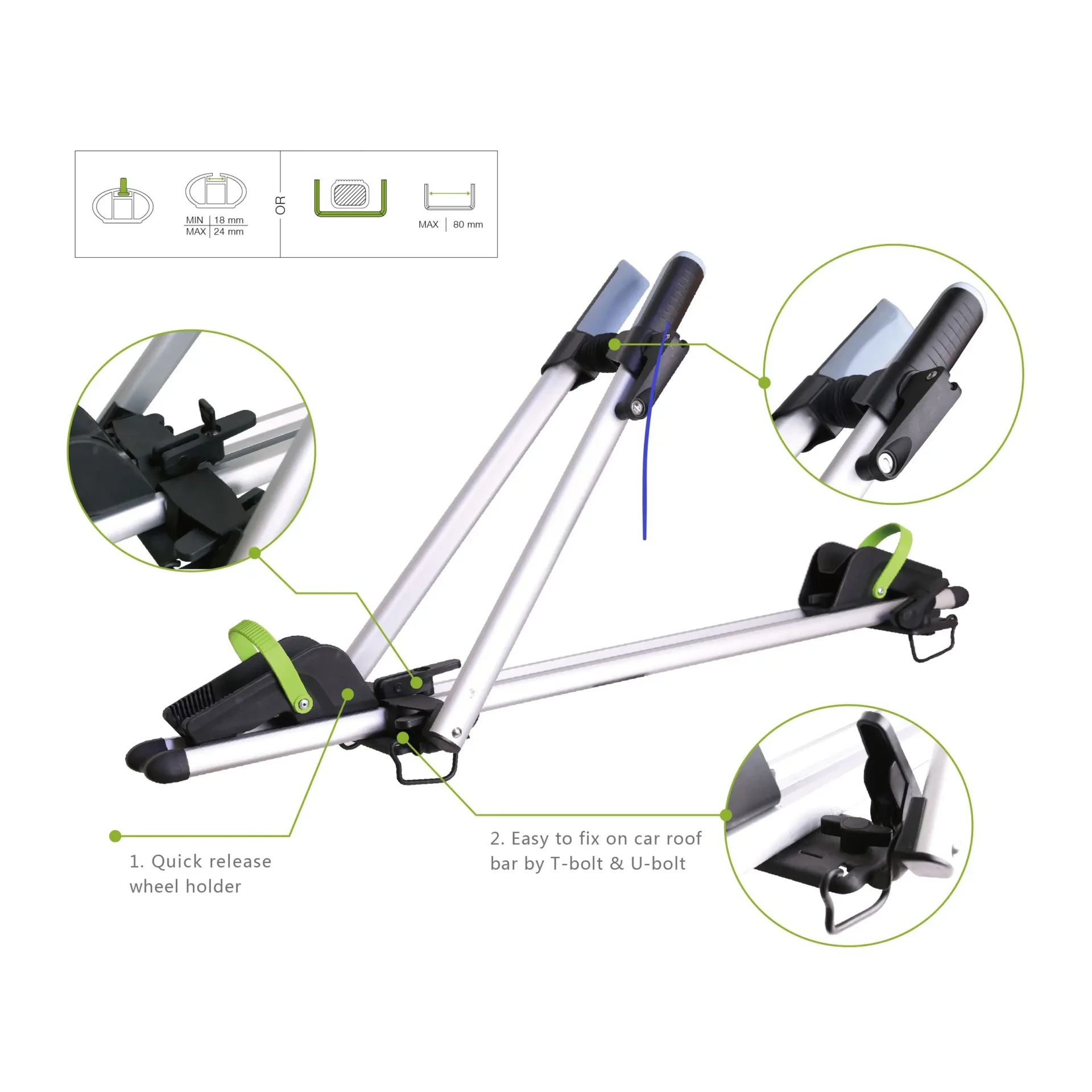

- Anti-Theft Dual Locking:High-security system that simultaneously locks the bicycle safely to the carrier and the carrier chassis firmly to the vehicle crossbars.
- Premium Anodized Aluminum:Structural 1350mm linear track treated with a natural anodized layer for superior wear and long-term corrosion resistance.
- Massive Tube Grip Profile:Upgraded protective frame clamp engineered to safely adjust and secure massive circular and oval down-tubes ranging from 30mm to 80mm.
- Dual Crossbar Compatibility:Shipped with standard hardware fitting 18x24mm inner T-slots and heavy-duty U-bolt clamps wrapping roof crossbars up to 80mm wide.
- Quick-Release Wheel Holders:High-efficiency tracking trays with precision wheel channels accommodating wide tire profiles up to 55mm for rapid consumer mounting.
Key Features & Engineering Advantages
1. Natural Anodized Aluminum Track with Certified ECM Structural Integrity
Engineered to fulfill the premier tier of global e-commerce portfolios and corporate fleet leasing networks. The BC001E features a high-clearance 1350mm linear track extruded from lightweight architectural-grade aluminum alloy with a premium natural anodise finish coating. Fully verified under official European ECM safety road protocols, this non-corrosive chassis resists dynamic highway load shifts and extreme weather shocks, ensuring absolute stability for long-distance bike transit.
2. Universal Frame Injury Prevention & Dual-Locking Anti-Theft Hardware Matrix
Eliminating vehicle and cargo vulnerabilities, our flagship model introduces a comprehensive dual-locking security architecture: the bicycle locks firmly to the carrier arm, while the underlying base housing locks the entire carrier directly to the vehicle’s crossbars. The system incorporates an advanced frame clamp that prevents damage by safely gripping bikes across massive profiles, encompassing round down-tubes from 30-80mm and oversized oval variants (30x60mm to 55x80mm). Simultaneously, high-efficiency quick release wheel holders adjust smoothly along the 1350mm rail to secure 22-29″ wheels with 20-65mm tires, paired with a tool-free anchoring interface compatible with standard sliding T-bolts (Min 18x24mm) and heavy-gauge steel U-bolts (Max 80mm wide).
Technical Specifications Matrix
| Industrial Metric | Technical Specification Parameters |
| Product Reference Designation | BC001E Flagship Dual-Lock Series |
| Carrier Configuration Style | Roof-Mounted Top Upright Bicycle Carrier |
| Primary Material Architecture | High-Tensile Structural Extruded Aluminum Alloy |
| Surface Protection Process | Premium Natural Anodise Finish Coating |
| Anti-Theft Asset Security | Dual-Locking System (Bikes Locks to Carrier, Carrier Locks to Car) |
| Wheel Securing Mechanism | High-Efficiency Quick-Release Wheel Holders |
| Bicycle Securement Contact | Frame Clamp Lined with Anti-Damage Protective Grips |
| T-Slot Hardware Compatibility | Minimum 18 mm x 24 mm Inner Tracks |
| U-Bolt Clamp Fitting Width | Maximum Up to 80 mm Wide Crossbars |
| Maximum Certified Load Capacity | 15 Kgs / 33.07 lbs Certified Working Load Threshold |
| Overall Structural Chassis Length | Ultra-Long 1350 mm (135 cm) Linear Track |
| Compatible Bicycle Wheel Size | Broad Universal Alignment Fitting 22″ to 29″ Wheels |
| Compatible Bicycle Tire Width | Precision Wheel Channels Accommodating 20 mm to 65 mm |
| Circular Down-Tube Diameter | Fits Massive Profiles from Minimum 30 mm to Maximum 80 mm |
| Oval Down-Tube Cross-Section | Fully Fits Profiles from 30×60 mm up to Maximum 55×80 mm |
| International Market Compliance | Official European ECM Quality Certificate Approved |
