Heavy-Duty 2-Bike Hitch-Mounted Platform Tray Carrier for Fat Bikes (Model: HB-304-2)
The HB-304-2 is an extra-wide tray-style hitch platform carrier built to handle heavy electric fat-bikes and rugged mountain bikes, providing overseas distribution channels with an ideal heavy-capacity transport solution for off-road vehicle equipment networks.
-
- 8″ Fat Tire Friendly:Specialized deep channel wheel trays designed to secure oversized electric fat tires up to 120mm widths natively.
- 60kg Structural Payload:Heavy-duty tensile carbon steel architecture structurally optimized to support 2 heavy E-bikes simultaneously without flexing.
- Telescopic Clamp Security:Multi-position adjustable wheel and frame clamps equipped with integrated anti-theft key lock cylinders for total security.
- Extended Wheelbase Track:Heavy-duty support paths balance extra-long bike frames up to an extended 1250mm (125cm) wheelbase threshold.
- Vertical Folding Structure:High-strength pivot joints allow the empty carrier to swing up 90 degrees vertically flat against the bumper for tight parking clearance.
Engineering Excellence & Technical Advantages

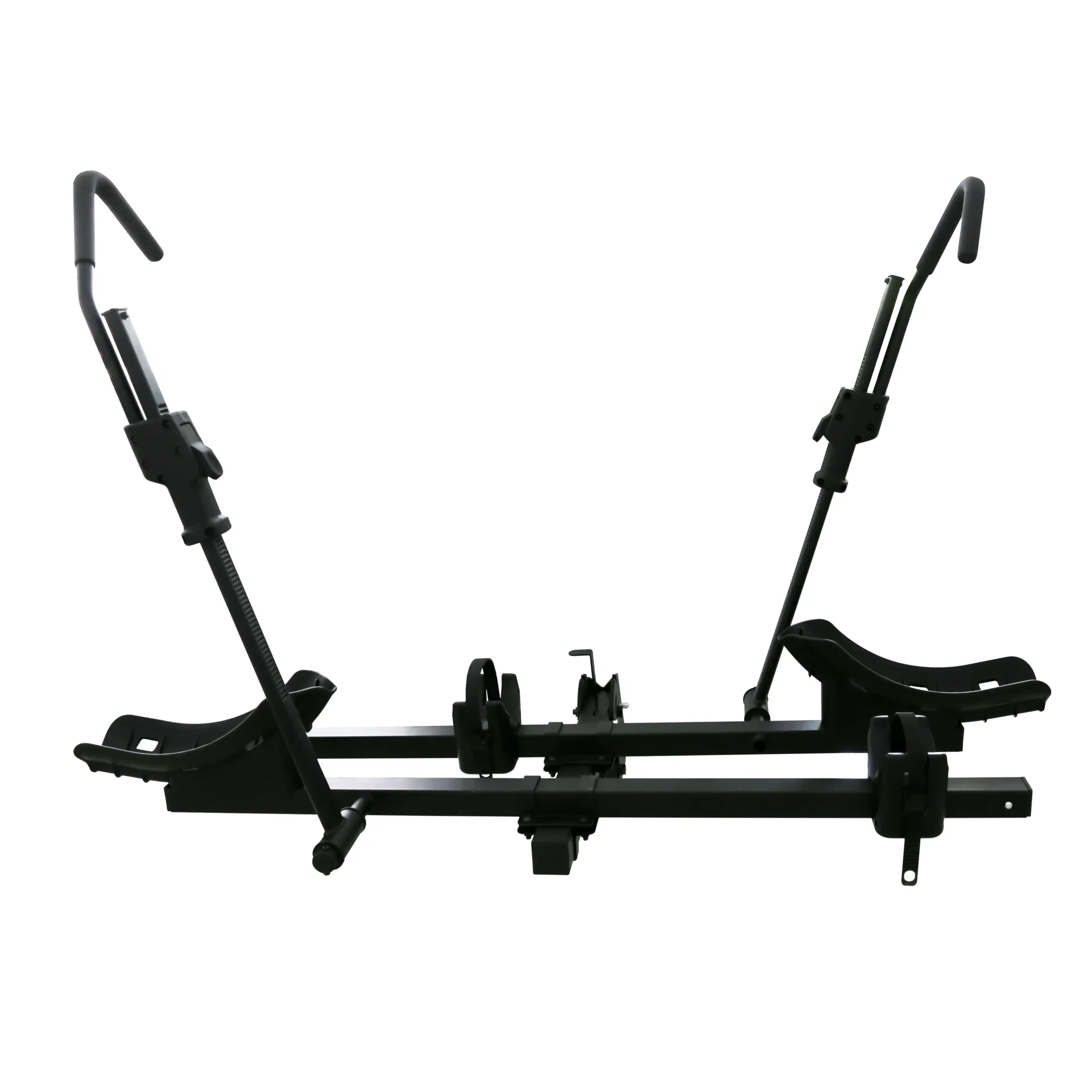

1. Heavy-Duty Steel Platform Profile for Commercial Fleet Mobility
Engineered to fulfill the surging global demand for high-capacity electric mobility transport solutions. The HB-304-2 utilizes a reinforced structural carbon steel front profile rated explicitly for heavy-duty E-Bikes and heavy mountain frames. This classic premium electroplated steel architecture guarantees absolute rigid alignment under dual bike stresses, providing international distributors with an incredibly reliable product line that minimizes retail returns and warranty claims.

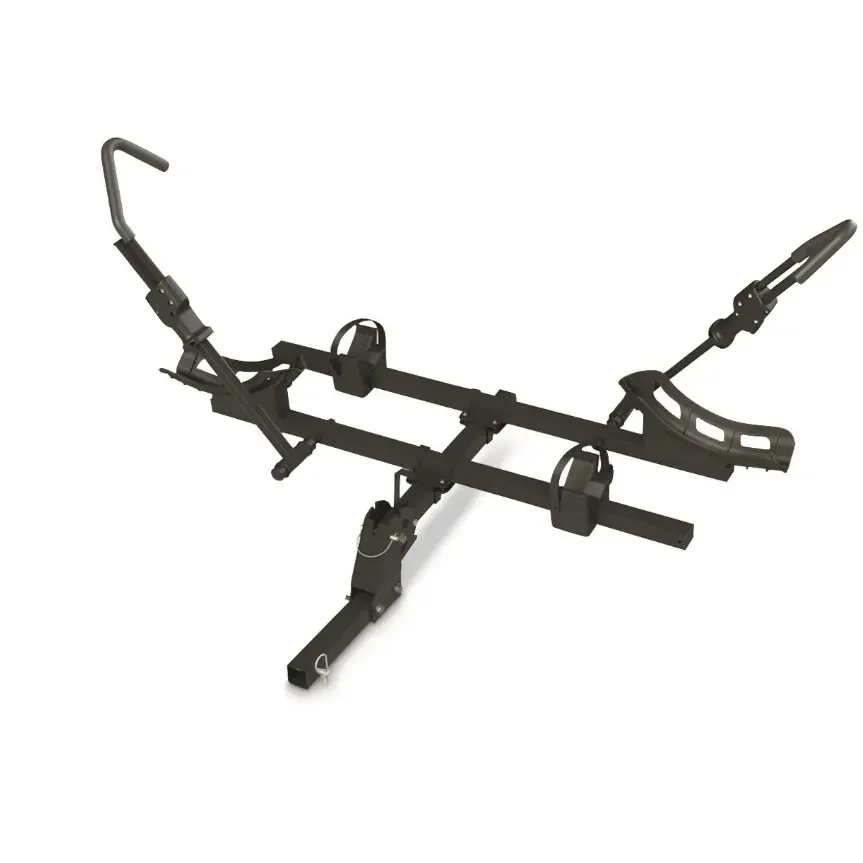

2. Universal 2-Inch Square Receiver Compatibility & Anti-Wobble Anchorage
Seamless adaptation to global vehicle mounting requirements is critical for large-scale outdoor distribution. The connection neck features a precision-milled, heavy-duty 2-inch square receiver hitch tube designed to fit standard class III and IV vehicular hitch receivers perfectly. This structural core is augmented by specialized tolerance-tightening hardware, ensuring zero rattling or play inside the vehicle receiver sleeve during rugged off-road or highway hauling.

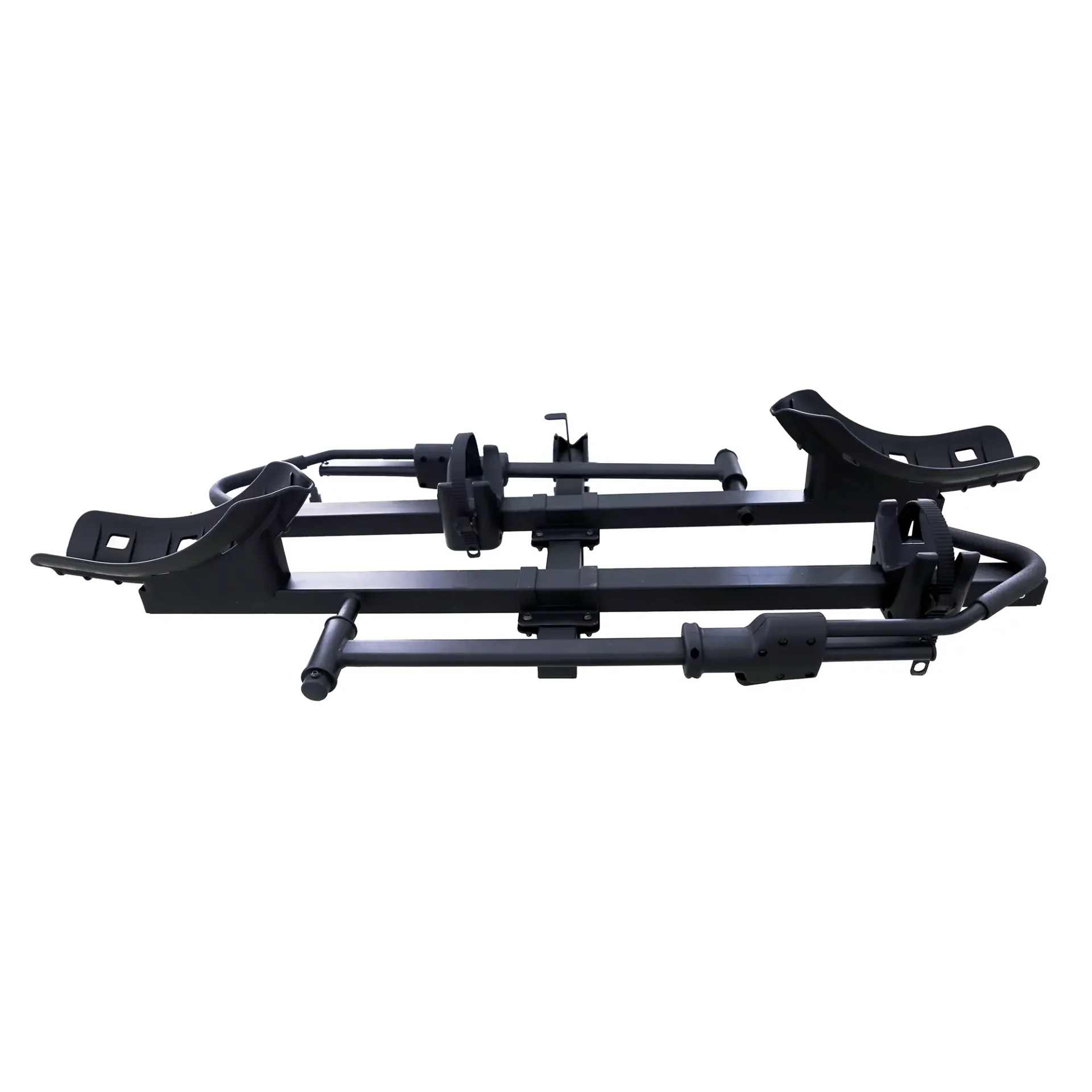

3. Space-Saving Space Optimization via Compact Folding Design
Maximizing post-travel consumer convenience drives high retail conversion rates. The HB-304-2 features an advanced dual-axis mechanical hinge that allows the entire horizontal platform tray assembly to fold vertically upward against the vehicle bumper within seconds. This drastically shrinks the vehicle’s rear extension profile, allowing end-users to park effortlessly in tight residential garages or urban parking spaces without dismounting the hitch frame.

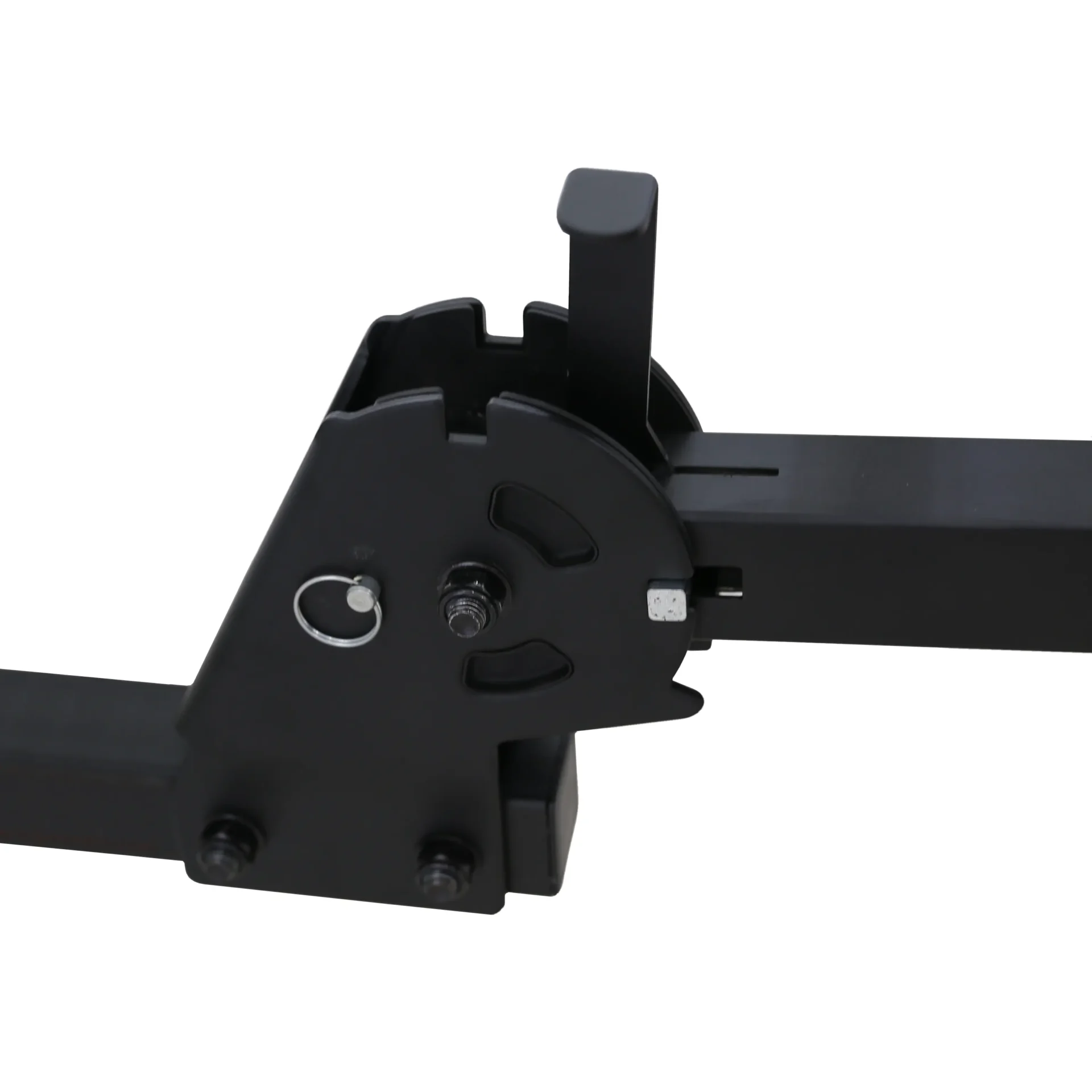

4. Smart Quick-Release Tilting System for Unhindered Rear Cargo Access
Eradicating vehicle trunk blockages, our proprietary quick-release tilt engineering allows users access to SUV and truck liftgates without unmounting the bicycles. By releasing a specialized heavy-duty security pin at the lower hinge pivot, the entire loaded platform safely tilts backward at an engineered angle. The mechanical leverage holds the massive cargo load secure while ensuring smooth clearance for the vehicle’s rear tailgate operation.

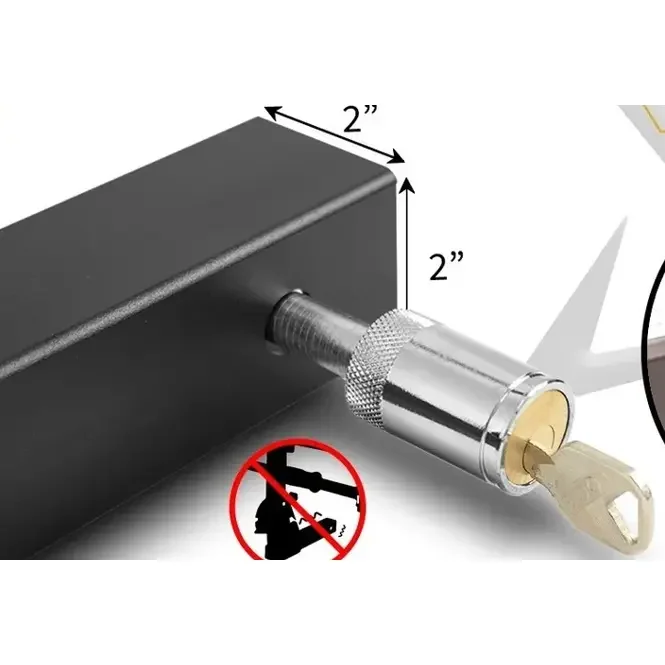

5. Integrated Anti-Theft Lock Protection for High-Value Asset Security
Providing total peace of mind for consumers transporting expensive modern E-bikes and premium carbon frames. The HB-304-2 integrates industrial-grade anti-theft security hardware directly into the locking hitch pin system. Built with an all-weather protective keyway cap that blocks dust and road grime, this lock cylinder tightly anchors the entire rack assembly to the car chassis, rendering unauthorized roadside removal virtually impossible.

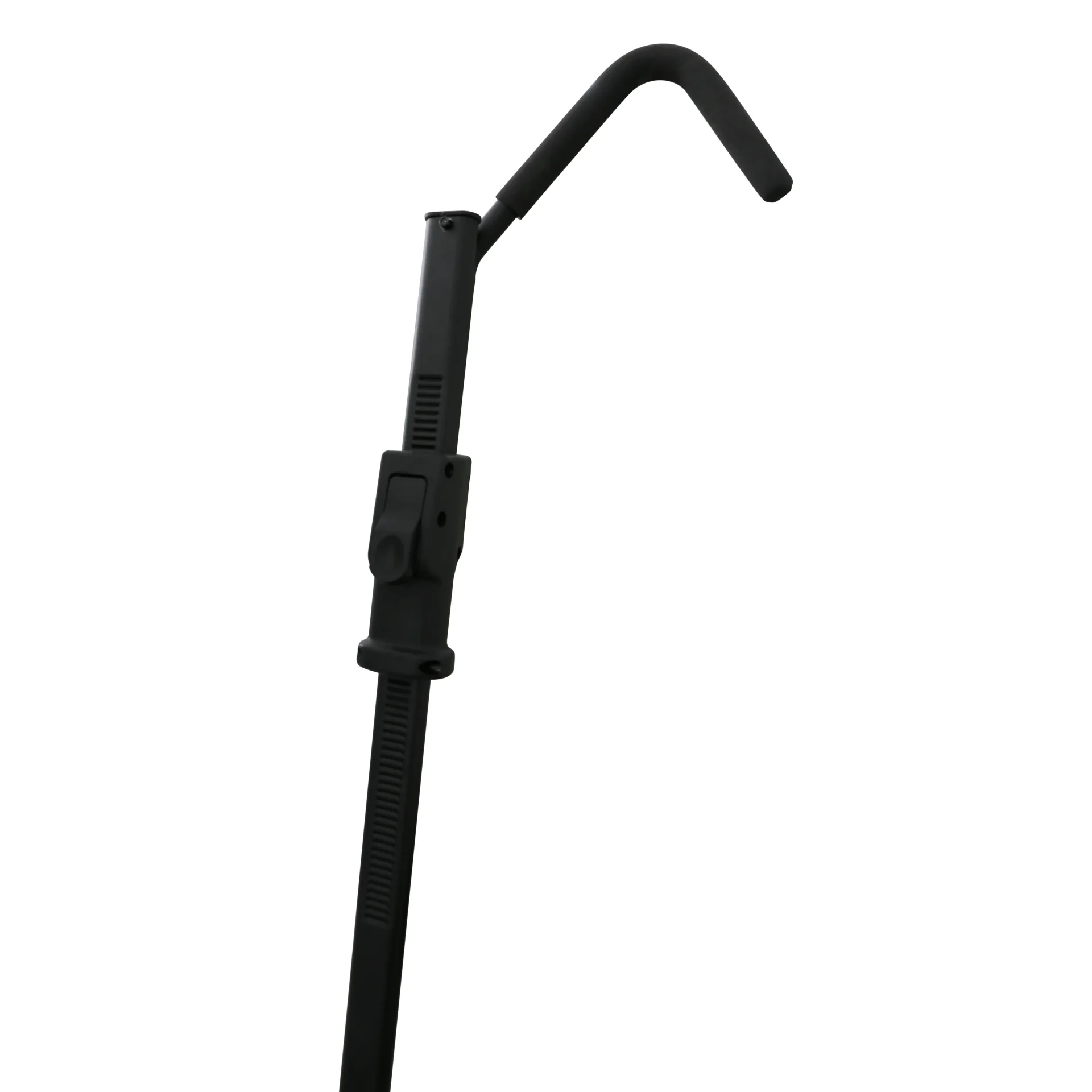

6. Adjustable Telescopic Frame Clamps with Multi-Geometry Adaptability
Accommodating extreme modern bike frame profiles requires rapid mechanical adaptability. The vertical support column features high-precision telescopic adjustable frame clamps (J-Arms) that glide vertically to lock down different frame heights (from 20mm up to 120mm). Equipped with heavy-duty padded inner surfaces, these telescopic hooks deliver absolute downward compression friction, gripping step-through E-bikes, sloping top-tubes, and standard frames tightly without causing paint abrasion.
Technical Specifications Matrix
| Industrial Metric | Technical Specification Parameters |
| Product Reference Designation | HB-304-2 Premium Platform Series |
| Carrier Configuration Style | Hitch-Mounted Platform Tray Style |
| Material Base Build | Heavy-Duty Tensile Carbon Steel Framework |
| Receiver Tube Hitch Size | Standard 2-Inch (2″ Receiver) |
| Maximum Bike Capacity | 2 Bicycles / E-Bikes Simultaneously |
| Maximum Load Capacity | 60 Kgs / 132 lbs Total Loading Threshold |
| Bicycle Tire Width Range | Minimum 20 mm to Maximum 120 mm (Fits Up to 4.8″ Fat Tires) |
| Maximum Wheelbase Distance | Up to 1250 mm / 125 cm Length |
| Compatible Bicycle Wheel Size | Broad Fitment from 22″ to 29″ |
| Hardware Security Features | Telescopic Adjustable Clamps & Integrated Anti-Theft Lock |
| Mechanical Adjustments | Vertical Fully Foldable Structure & Rear Tilting Joint |
| Packaging Box Quantity | 1 Set / Standard Export Carton |
| Packaging Box Dimensions | 1350 mm * 310 mm * 250 mm |
| Gross Weight (G.W.) | 23.5 Kgs / 51.8 lbs per Box |
| Net Weight (N.W.) | 20 Kgs / 44.09 lbs Net Weight |
| Global Market Compliance | European ECM Certificate Approved & Verified |
