TUV Tested Towbar Mounted 2 E-Bike Carrier with Quick Fixation & Tilting Base (Model: TB012-2EB)
The TB012-2EB is a premium, high-capacity towbar-mounted platform carrier built to fulfill strict global road logistics demands. This heavy-duty system integrates uncompromised structural bicycle stability, dual anti-theft key protection, and rapid trunk-access engineering straight out of the box.

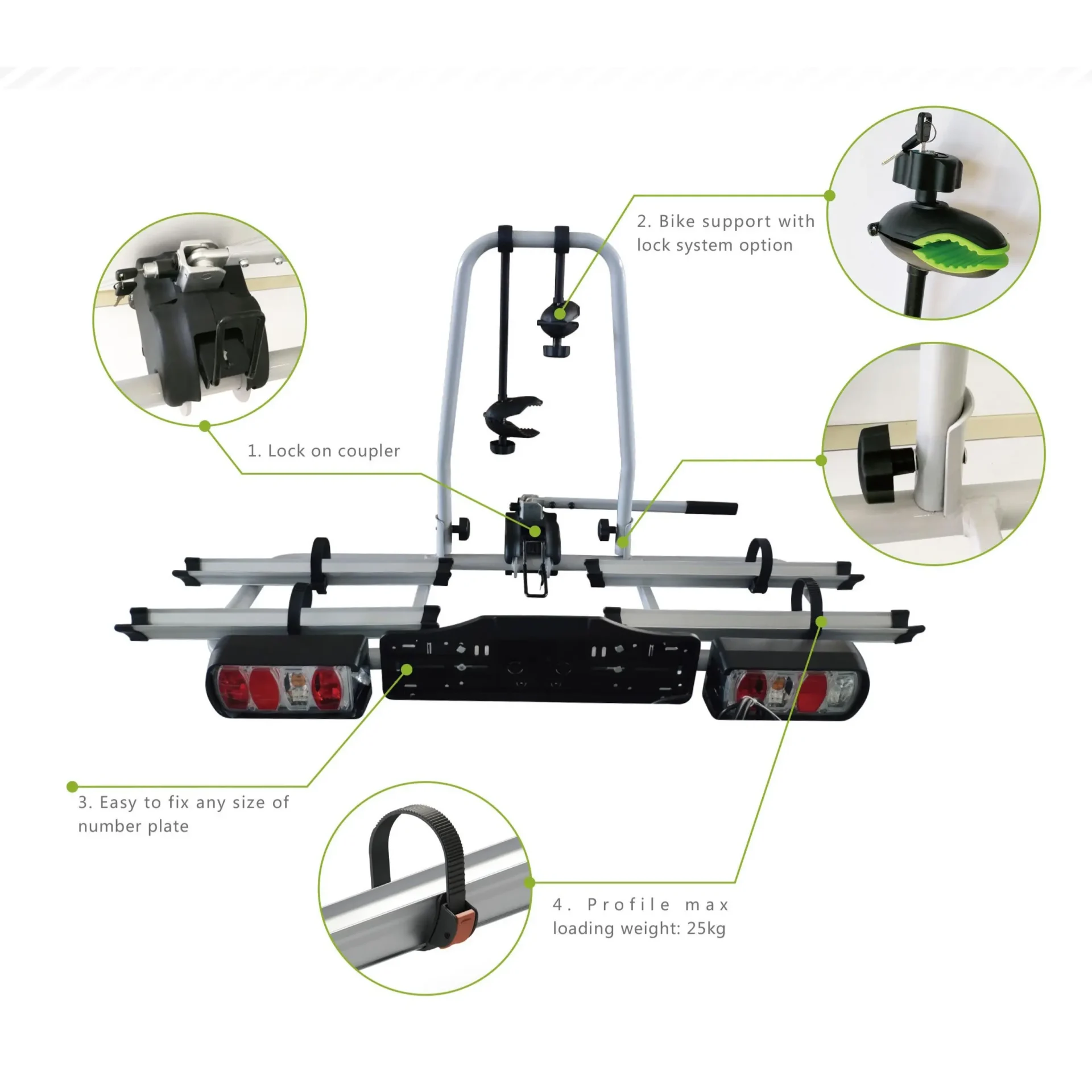

- Heavy-Duty Structural Payload:Built with a high-rigidity hybrid framework engineered to safely stabilize heavy electric bicycles.
- Dual Anti-Theft Protection:Outfitted with commercial-grade metal locking systems on both the coupler base and frame holders.
- Multi-Size Frame Clamping:Features high-strength rigid steel jaws to securely encapsulate varying vehicle bicycle frames.
- Global Light Board Compliance:Equipped with a fully functional rear lighting matrix to ensure immediate road legality.
- Smart Pivot Trunk Access:Designed with a rapid-access foot pedal mechanism allowing the loaded platform to tilt smoothly.
Key Engineering Advantages & Fleet Features
1. TUV Tested Engineering with Comprehensive Dual Anti-Theft Protection
Formulated for premium commercial distribution, the TB012-2EB features a highly optimized structural design blending lightweight aluminum profiles with a high-rigidity solid steel U-frame. Extensively tested according to rigorous TUV safety protocols, this platform manages a massive 60 kg maximum weight capacity, making it native-ready for the heavy electric bicycle market. Security is fully covered via a dual-lock infrastructure; the platform locks securely to the vehicle towball coupler, while the specialized rigid frame holders integrate a bike support lock system option to guarantee zero-theft peace of mind for B2B fleet buyers.
2.Compliant E4 Lighting Board & Rapid-Access Pivot Tilting Base

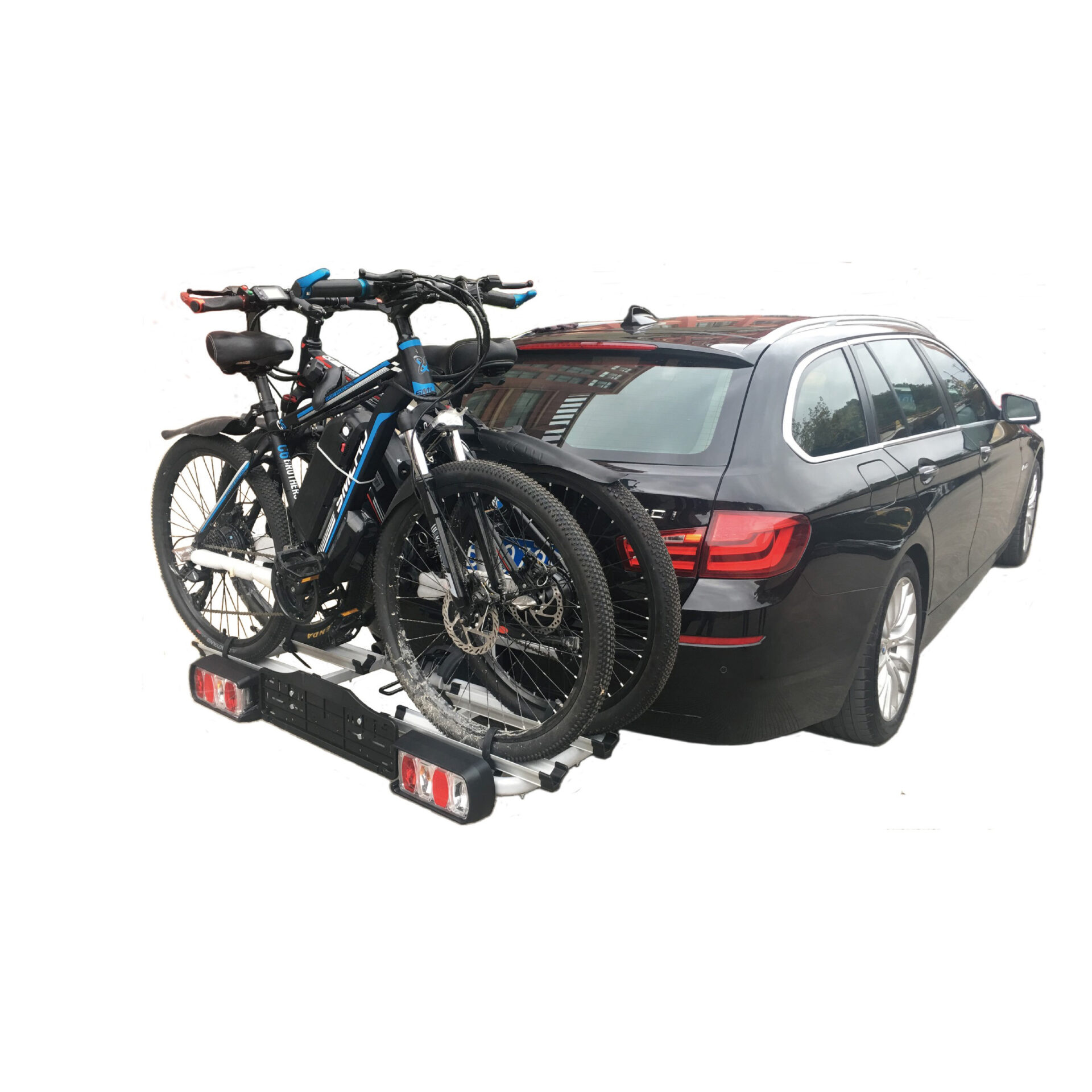

Ensuring immediate street legality across strict premium global automotive networks is a vital requirement for high-volume distributors. As demonstrated in the real-world application above, the TB012-2EB securely supports up to two large electric or traditional bicycles without any lateral flexing, accommodating wheelbases up to 115cm and tire widths from 20mm to 55mm. Highway safety compliance is comprehensively covered by the fully integrated rear light board, which features an official E4-marked halogen matrix powered by a standard 13-pin plug connection. Releasing the lower security pivot allows the loaded platform to shift backward smoothly, keeping vehicle identification, signaling, and instant trunk access perfectly clear.
Technical Specifications Matrix
| Industrial Metric | Technical Specification Parameters – TB012-2EB |
| Product Designation | TB012-2EB Premium Series |
| Carrier Configuration Style | Towbar-Mounted Platform Bike Carrier |
| Hitch Fitting Interface | Compatible with Standard 2-Inch Towball with Key Lock |
| Maximum Capacity | Secure Accommodation for Max 2 Electric Bikes or Traditional Bikes |
| Maximum Payload Rating | 60 kg (Heavy Duty TUV-Tested Total Capacity) |
| Maximum Wheelbase Allocation | Up to 115 cm |
| Tire Width Fitting Range | Fits Tire Profiles from 20 mm up to 55 mm |
| Bicycle Size Compatibility | Accommodates Wheel Diameters from 22 Inches up to 29 Inches |
| Bike Frame Clamp Diameter | Fits Bike Top-Tubes from Minimum 30 mm to Maximum 50 mm |
| Material Build Architecture | Premium Aluminum Profiles with High-Rigidity Solid Steel U-Frame |
| Physical Dimensions | 1200 mm * 550 mm * 780 mm |
| Integrated Electronics | 13-Pin Plug Connection with Certified E4-Marked Halogen Lights |
| Number Plate Accommodation | Adjustable Frame Architecture (Easy to Fix Any Size of Number Plate) |
| Mechanical Adjustments | Heavy-Duty Smart Base Pivot Tilting System for Trunk Access |
| Security Hardware | Lock on Coupler + Bike Support Frame Holders with Lock System Option |
| Testing Standards Audited | Fully Tested and Verified According to TUV Regulations |
