Aerodynamic Aluminum Fixed Point Roof Crossbar System (Model: RB009B)
The RB009B is a premium, low-noise vehicle roof crossbar system engineered for fuel-efficient cargo transit, boasting a certified 90kg working load threshold to balance rooftop gear safely for international automotive accessory wholesalers and B2B procurement networks.
-
- Dedicated Fix Point Mounting:Engineered to bolt directly into original vehicle factory fixed mounting points, forming a rigid, zero-play structural connection.
- Aircraft-Grade Extrusion Aluminum:Structural channels forged from premium extruded aircraft aluminum, delivering a high strength-to-weight ratio and long-term durability.
- Aerodynamic Oval Profile:Streamlined low-drag cross-section design optimized for wind noise dampening and minimal aerodynamic drag at highway speeds.
- Universal T-Slot Integration:Equipped with a standardized 24mm * 20mm T-slot channel to allow rapid, seamless anchoring of commercial rooftop carriers and gear.
- Panoramic Sunroof Clearance:Engineered with an intentional 98mm lower clearance height, ensuring a safe vertical clearance for panoramic sunroof tilt and slide pathing.
Key Features & Technical Advantages
Aerodynamic Aluminum Profile & Universal T-Slot Integration
Engineered from non-corrosive, premium-grade structural aluminum, the RB009B crossbars feature a calculated aerodynamic oval profile. This specialized shape smoothly deflects oncoming highway airflow to eliminate whistling wind noise. Extruded onto the top channel is a standardized 24*20mm T-slot system, offering immediate, universal accessory compatibility for commercial and retail distribution markets.

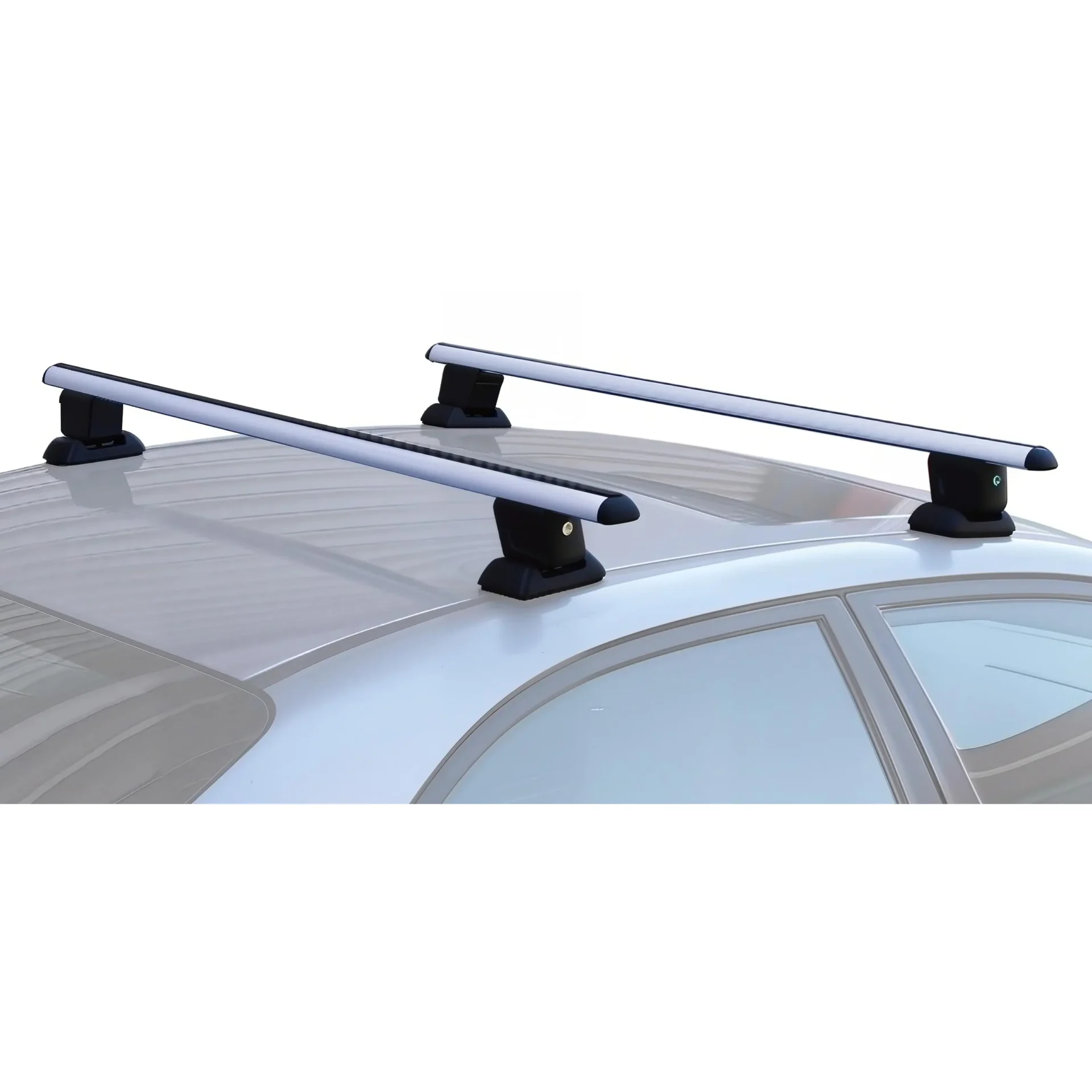

Factory Fix-Point Integration & Fleet Fitment Aesthetics
Ensuring complete transit peace of mind requires zero physical shifting. The RB009B locks cleanly into the vehicle’s original factory fixed mounting points, producing an absolute mechanical bond with the automotive chassis. Shipped complete with pre-assembled components, it facilitates a simple, rapid installation timeline that cuts consumer setup complications and retail product return claims to zero.

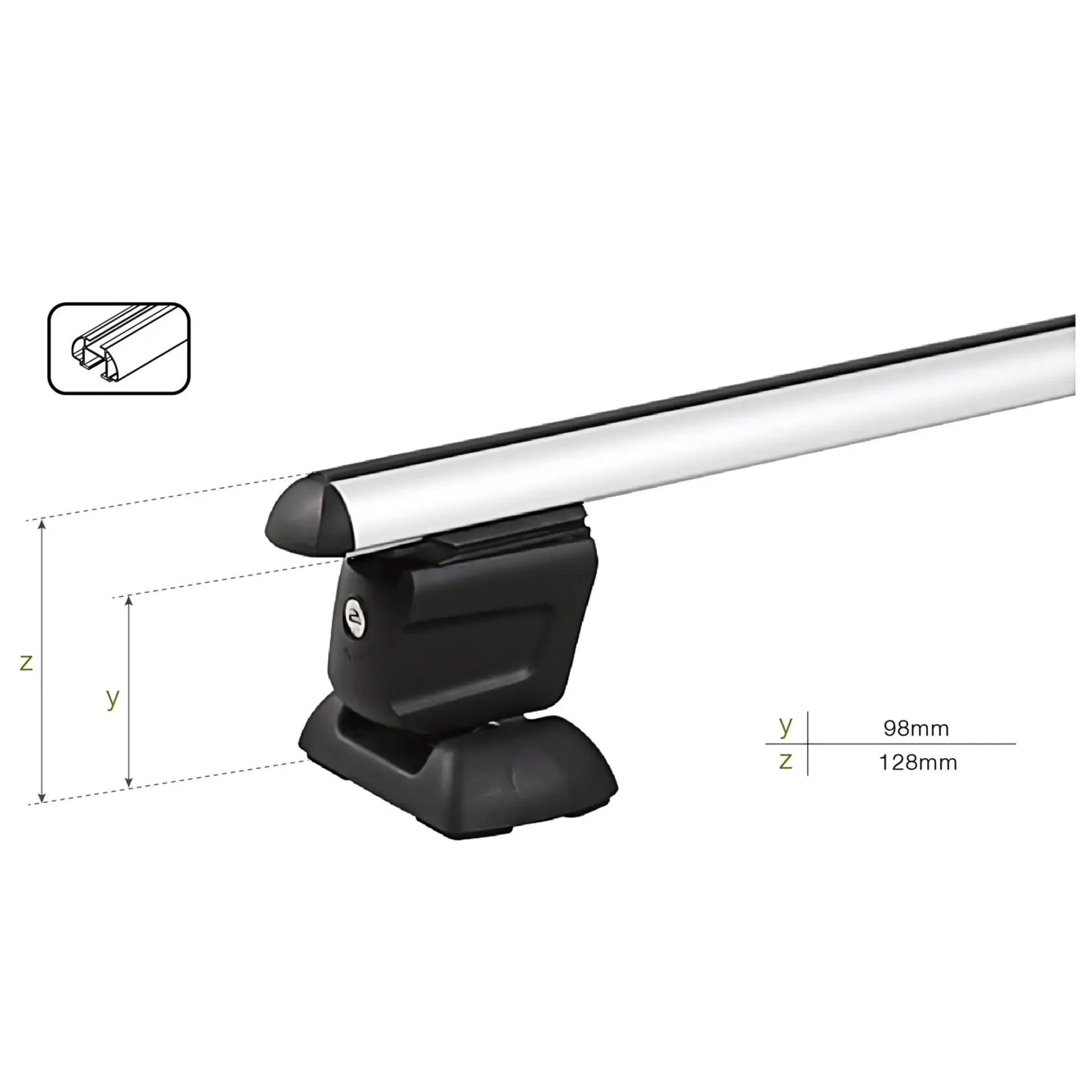

Calculated Height Clearances for Sunroof Operational Safety
Vehicles with pre-drilled fixed roof points often exhibit shallow overhead tolerances. The RB009B bypasses this issue via an intentional 98mm lower clearance height from the roof line to the underside of the aluminum rail. This optimized spacing provides uncompromised safety margins for panoramic sunroof tilting and ventilation while providing comfortable finger-room for cargo attachments. The total added height profile is capped at a low-profile 128mm.

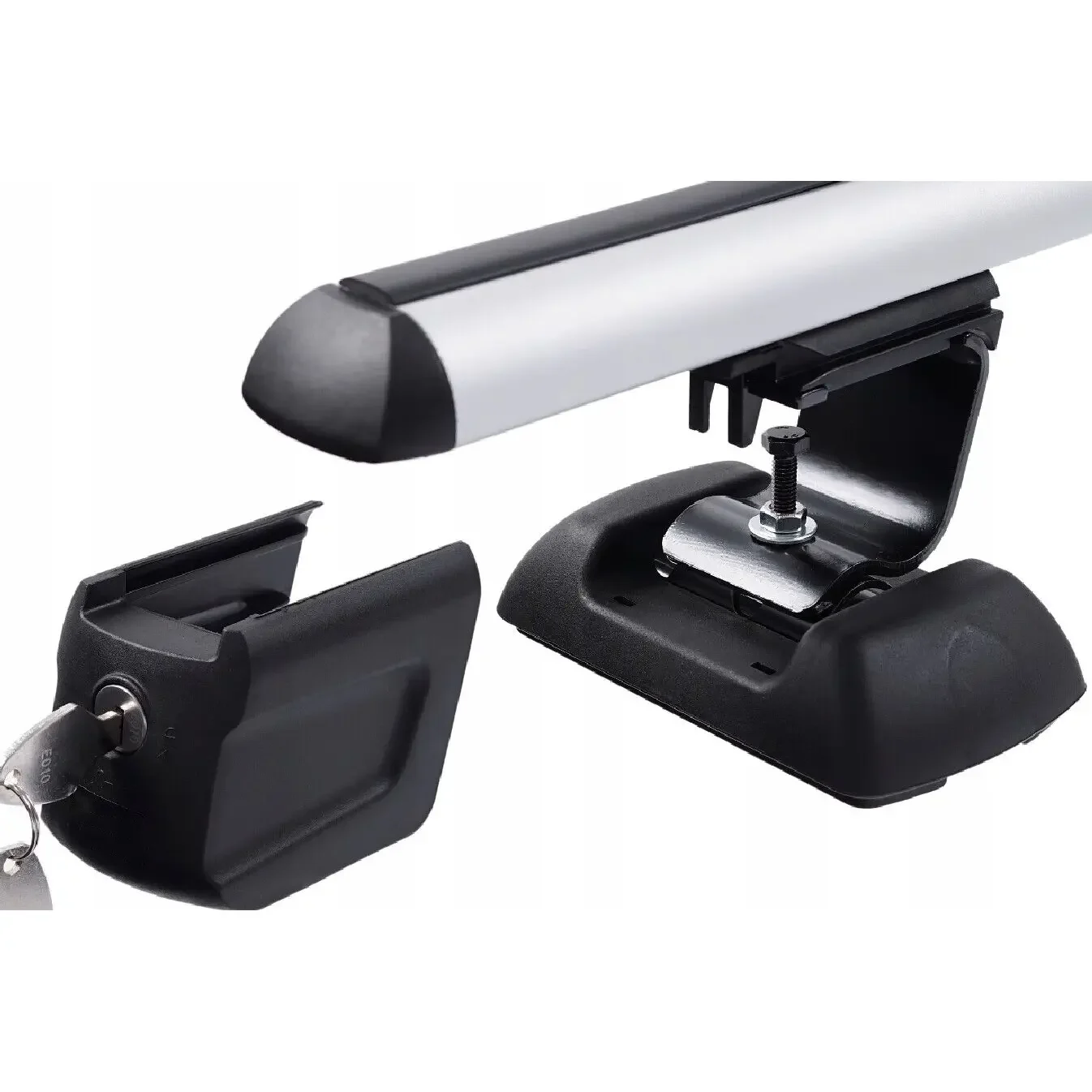

Heavy-Duty Internal Mechanism & Integrated Lock Protection
Removing the lockable external nylon housing reveals a robust, precision-engineered metal tensioning bracket. The inner core is fortified to distribute dynamic pulling pressures evenly across the vehicle’s mounting frame, ensuring unwavering structural stability under continuous 90kg loads. A heavy-duty key-locking security system is permanently built into the structural casing to deny unauthorized tool access or accessory removal.
Technical Specifications Matrix
| Industrial Metric | Technical Specification Parameters |
| Product Designation | RB009B Aluminum Fixed Point Series |
| Compatible Rail Interface | Dedicated Vehicle Fix Points (Fixed Mounting Points) |
| Material Build | High-Grade Extruded Aircraft Aluminum Channels |
| Cross-Section Profile | Aerodynamic Oval Profile (Low Wind Noise) |
| Security Hardware | Integrated Key-Locking Security Cylinder on Attachment Feet |
| Available Crossbar Lengths | 1200 mm / 1350 mm Options |
| Maximum Load Capacity | 90 Kg Certified Working Load Threshold |
| T-Slot Channel Standard | Universal 24 mm * 20 mm Dimensions |
| Lower Clearance Height | 98 mm (Panoramic Sunroof Optimized Space) |
| Total Added Height Profile | 128 mm Top Surface Baseline |
| International Standards | Rigorously Audited to ISO/PAS 11154:2006 Regulations |
| Global Market Compliance | Fully ECM Certificate Approved (CE Tested Framework) |
