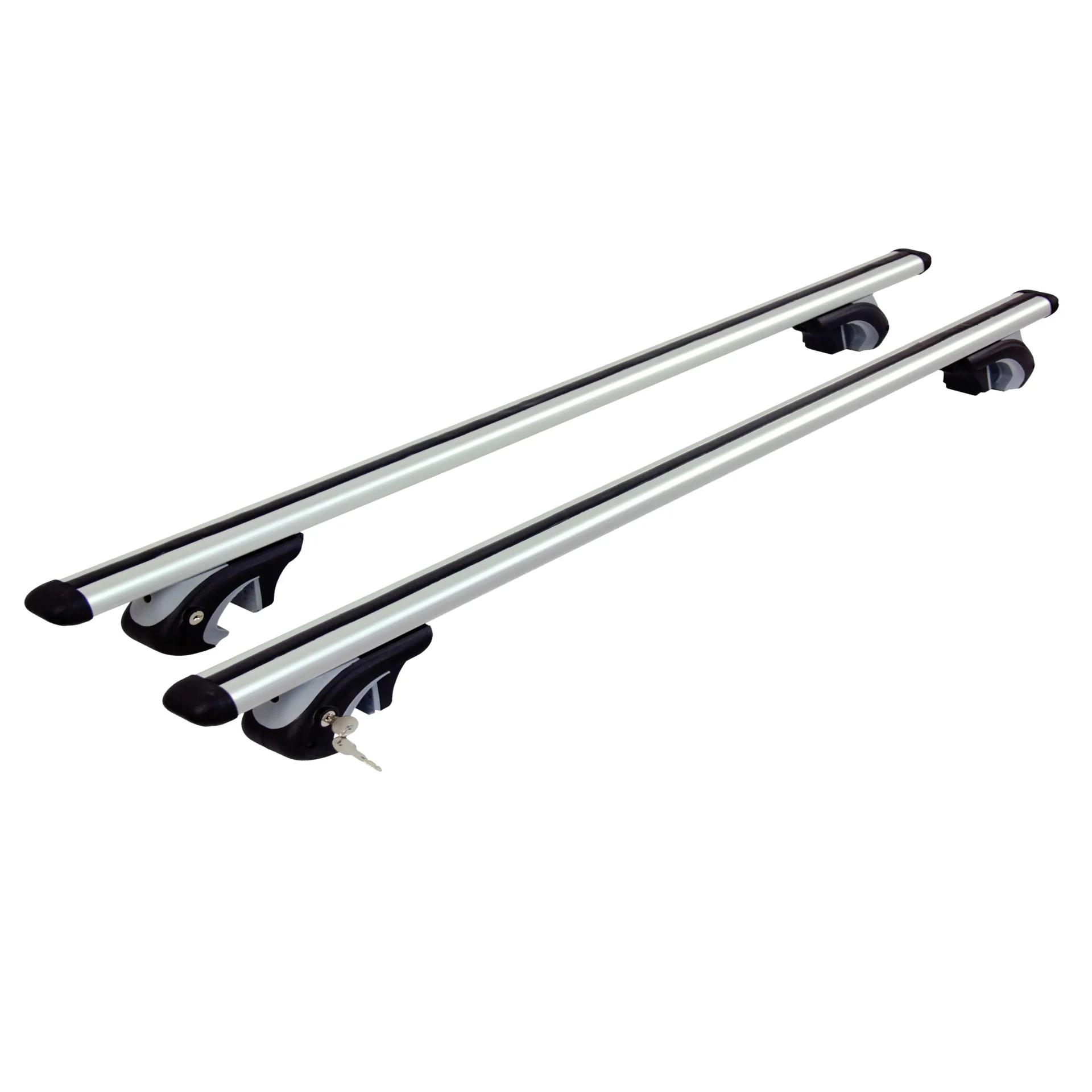

Aerodynamic Aluminum Open Roof Rail Crossbars with Acoustic Underside Sealing (Model: RB005)
The RB005 is a commercial-grade, heavy-duty aluminum roof rack system designed to streamline global outdoor supply chains and fleet management logistics. Engineered natively for vehicles with longitudinal open roof rails, this universal platform eliminates retail configuration bottlenecks by blending structural cargo stability, commercial key security, and advanced acoustic engineering straight out of the box.
- High-Capacity Structural Rating:Built with a reinforced aluminum architecture capable of safely anchoring heavy-duty rooftop tents, commercial cargo platforms, and overland gear.
- Acoustic Underside Sealing:Incorporates a proprietary, fully enclosed mid-section channel seal that prevents aerodynamic turbulences and eliminates high-speed wind whistling.
- Tool-Free Sizing Adaptability:Features an integrated telescopic leg mechanism that automatically adjusts to varying rail profiles, maximizing cross-vehicle fleet compatibility.
- Anti-Theft Asset Protection:Outfitted with commercial-grade metal locking cores built directly into each foot casing to prevent opportunistic theft during field deployment.
- Premium T-Slot Track Integration:Includes an expanded upper channel profile that ensures seamless, flexible compatibility with premium international carriers and transport hardware.
Key Engineering Advantages & Commercial Assets
1. Certified TUV & ISO Heavy Load Performance with Out-of-the-Box Readiness
Formulated for high-volume commercial distribution, the RB005 upgrades standard consumer rack choices via an industrial-grade structural aluminum core styled into a low-drag profile. Rigorously tested according to international automotive road equipment standards under ISO PAS 11154:2006 and officially verified by the rigorous TUV authority, global sourcing managers can import this transport hardware with total peace of mind. By arriving completely preassembled and ready to use immediately out of the box, it completely slashes wholesale assembly costs and accelerates time-to-market.
2.Aerodynamic Longitudinal Mount Fitting with Zero Lateral Flexing
Eradicating common wind resistance and loose-tolerance problems, our proprietary aerodynamic profile allows end-users a highly stable travel experience on high-speed highways. As demonstrated in the real-world automotive application above, the crossbars anchor firmly to the vehicle’s longitudinal open roof rails without warping under high load tension. This pristine vehicle front-to-back fitment ensures optimal fuel efficiency while keeping heavy commercial rooftop cargo safely balanced on the vehicle chassis.
3.Advanced Structural Underside Sealing for Ultimate Aerodynamic Noise Reduction
To eliminate the common high-speed howling and cabin whistling noises that plague standard aftermarket crossbars, the RB005 incorporates advanced acoustic sealing technology. As visualized from the inverted profile perspective above, the engineered structural track features a fully sealed and enclosed underside framework along its entire mid-section slot rather than being completely hollowed out. By covering the open cavity gaps and pairing it with integrated heavy-duty protective rubber cushioning inside the mounting claw clamps, this clean factory-sealed architecture completely bypasses aerodynamic turbulences to deliver an ultra-quiet, silent cruise for executive fleet applications.
4.Rigorous Geometric Dimensioning and Premium Anti-Theft Protection

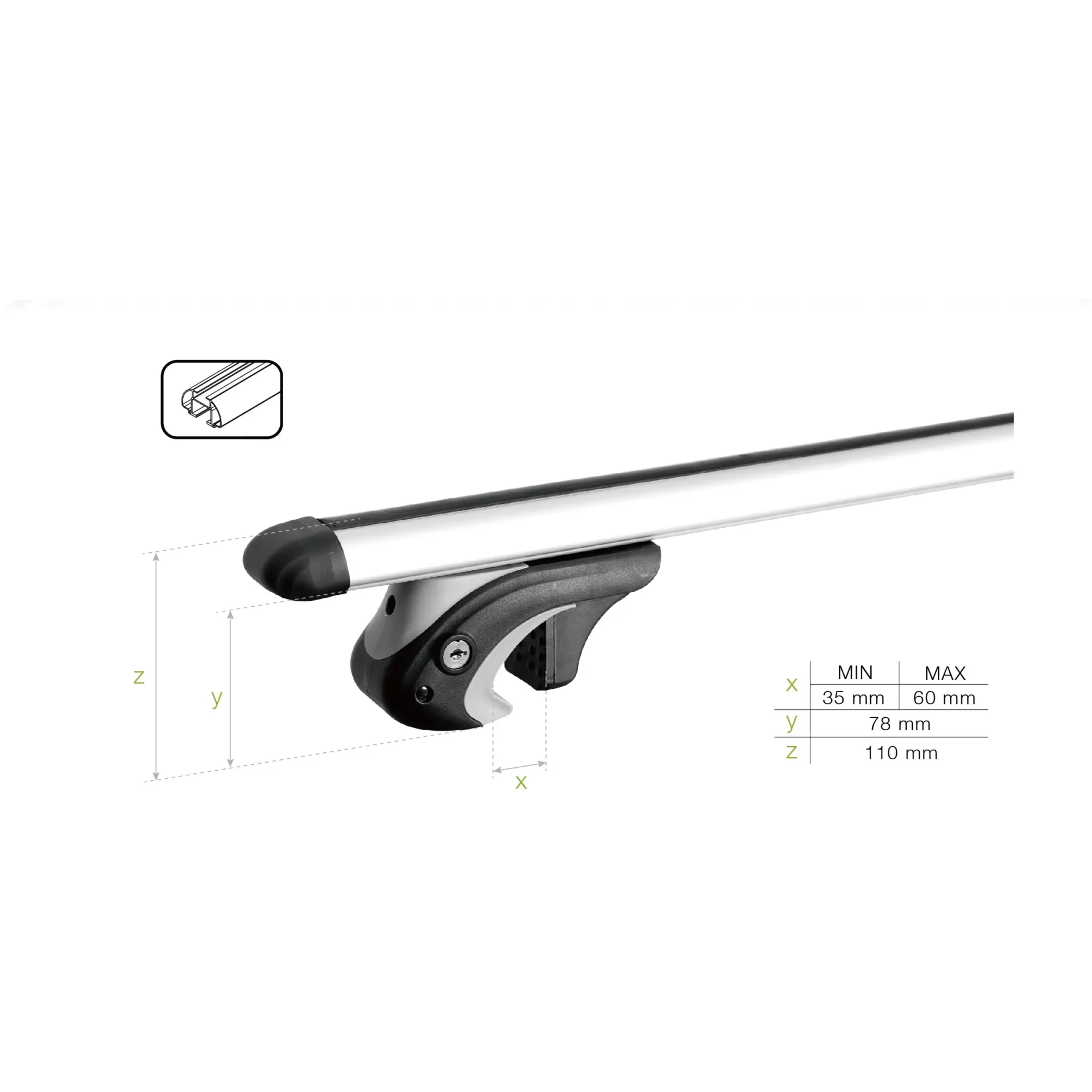

Achieving maximum fleet utility requires eliminating rigid hardware sizing constraints through precision mathematics. The RB005 utilizes adaptive telescopic foot engineering that is dynamically verified to wrap around open longitudinal roof rails with a diameter profile ranging from 35mm up to 60mm. Security is thoroughly reinforced by integrated metal locking mechanisms built inside the foot casing. This clever combination of a universal 24×20 mm T-slot interface and premium key-controlled theft protection makes it an incredibly versatile asset for international retailers and supply chains.
Technical Specifications Matrix
| Industrial Metric | Technical Specification Parameters – RB005 |
| Product Designation | RB005 Premium Heavy-Duty Series |
| Carrier Configuration Style | Universal Open Roof Rail Crossbars |
| Vehicle Rail Interface | Engineered for Open Longitudinal Mounts |
| Roof Rail Diameter Fitment | Accommodates Rails from Minimum 35 mm to Maximum 60 mm |
| Acoustic Engineering | Profile Underside Sealing Architecture to Avoid Wind Noise (Partial Solid Base) |
| Maximum Payload Rating | 90 kg (Heavy Duty Structural Load Support) |
| T-Slot System Tracking Size | Standard Universal 24 mm * 20 mm Tracking Channel |
| Material Build Architecture | Premium High-Tensile Structural Aluminum |
| Available Length Profiles | Dual Options: 1200 mm / 1350 mm |
| Security Hardware | Casing Foot Mounting with Keys / Fully Protected Against Theft |
| Installation Status | Fully Preassembled and Ready to Use Out of the Box |
| Testing Standards Audited | Rigorously Verified According to ISO PAS 11154:2006 & TUV Regulations |
| Commercial Categories | For Open Roof Rails, Roof Racks Series |
