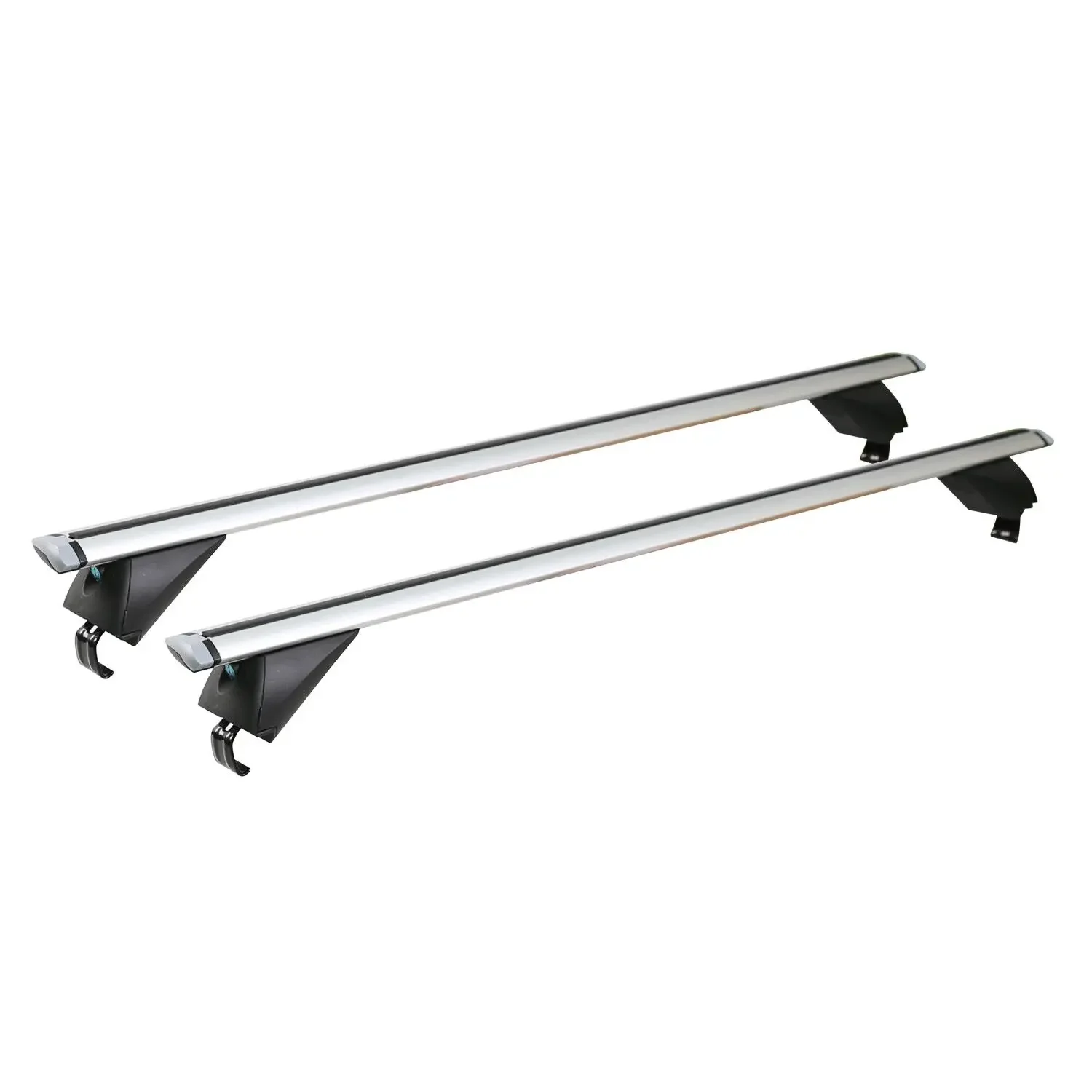

Premium Wing-Shaped Open Rail Roof Crossbar System (Model: RB003C)
The RB003C is a flagship-tier, ultra-low noise vehicle roof crossbar system engineered for completely silent cargo transit across standard open raised side rails, boasting a certified 90kg working load threshold to balance gear safely for international automotive accessory wholesalers and B2B procurement networks.
-
- Silent Special-Shaped Wing Profile:Advanced aerodynamic wing geometry engineered specifically to break wind resistance, minimize trailing vortices, and achieve ultra-low noise control.
- Double Walled Aircraft Aluminum:Extruded double-walled structural aircraft aluminum core designed for maximum weight loading rigidity and resistance against highway bending stress.
- Dedicated Open Rail Fitment:Modular clamping base engineered to wrap standard vehicle open side rails seamlessly across track diameters from 25mm to 55mm.
- Internal Tensioning Adjustability:Foot housings integrate an easy internal allen key tensioning mechanism, enabling rapid structural tightening without requiring bar end cap removal.
- TUV & ISO Certified Safety:Fully verified according to PPP 53210B:2013, AfPS certified testing, and rigorously audited to the newest international ISO/PAS 11154:2023 vehicle roof load regulations.
Key Product Features & Automotive Engineering Advantages
Double-Walled Aerodynamic Wing Profile & Integrated T-Slot System
Engineered for premium global markets, the RB003C features an advanced, double-walled extruded aluminum wing profile. This silent, special-shaped wing structure actively manages high-speed airflow to drastically cut down aerodynamic drag and wind noise. Built directly into the top channel is a standardized 24*20mm T-slot tracking system, enabling commercial distributors and retail users to effortlessly slide on bike racks, kayak mounts, or roof boxes without removing the protective end caps.
Perfect OEM Fitment Aesthetics & Streamlined Low-Profile Silhouette

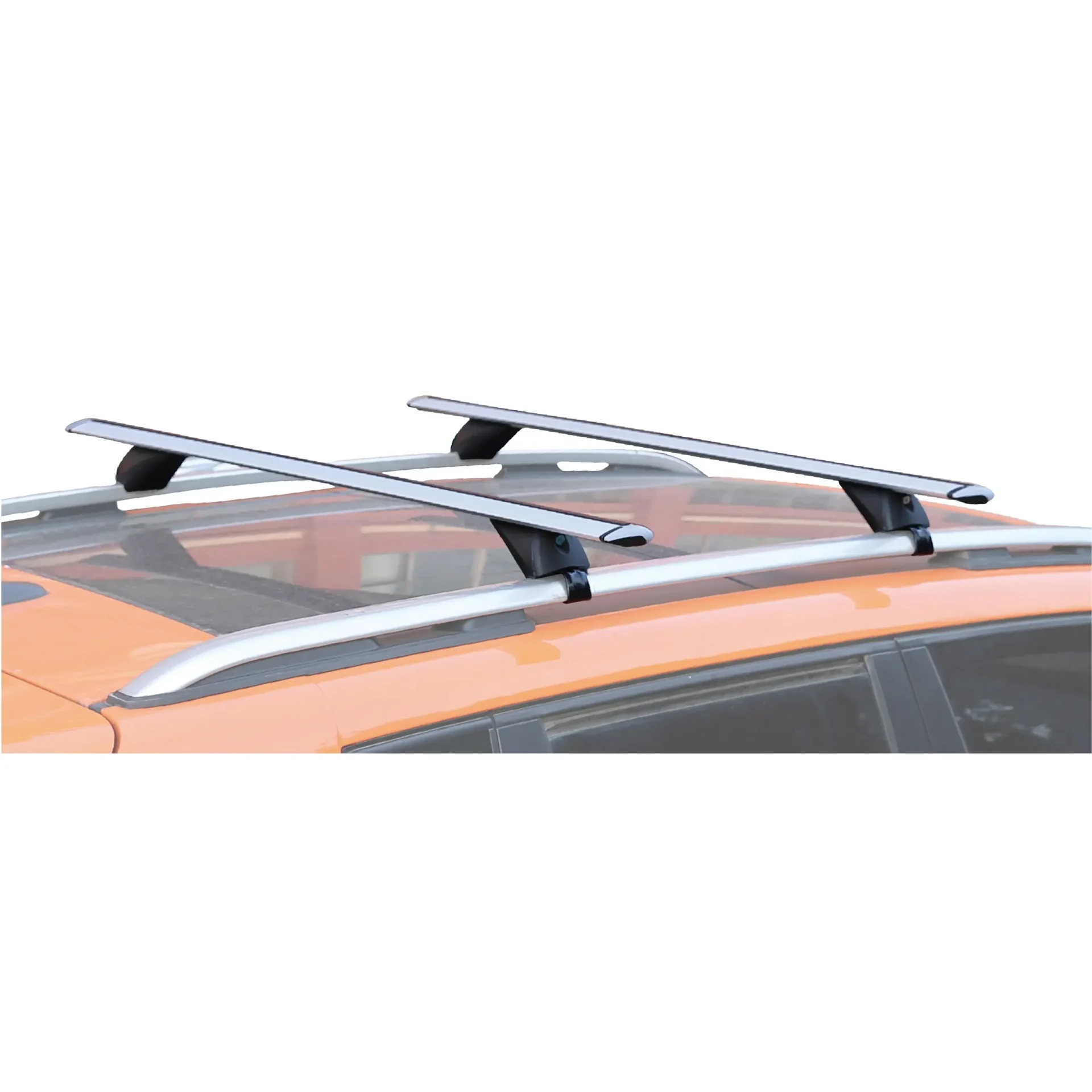

Achieving a flawless commercial presentation requires a product that complements modern vehicle design. The RB003Csits low on factory-raised roof rails, preserving the vehicle’s original aerodynamic silhouette while adding a premium, rugged look. Shipped with pre-installed locking hardware, it provides a turnkey logistics solution for aftermarket accessory importers looking to deliver high-tier, out-of-the-box performance to their retail and fleet buyers.
Nylon-Fiberglass Enclosed Feet & Paint-Safe Rubber Coated Hooks
The foundational integrity of the RB003C lies within its premium material construction. The enclosed attachment feet are injection-molded from high-grade nylon blended with reinforced fiberglass, maintaining exceptional structural rigidity under harsh UV rays and sub-zero temperatures. To completely protect the vehicle’s paintwork from metal-on-metal friction during intense transit vibration, the structural steel clamping hooks undergo a meticulous, industrial rubber-coating process.

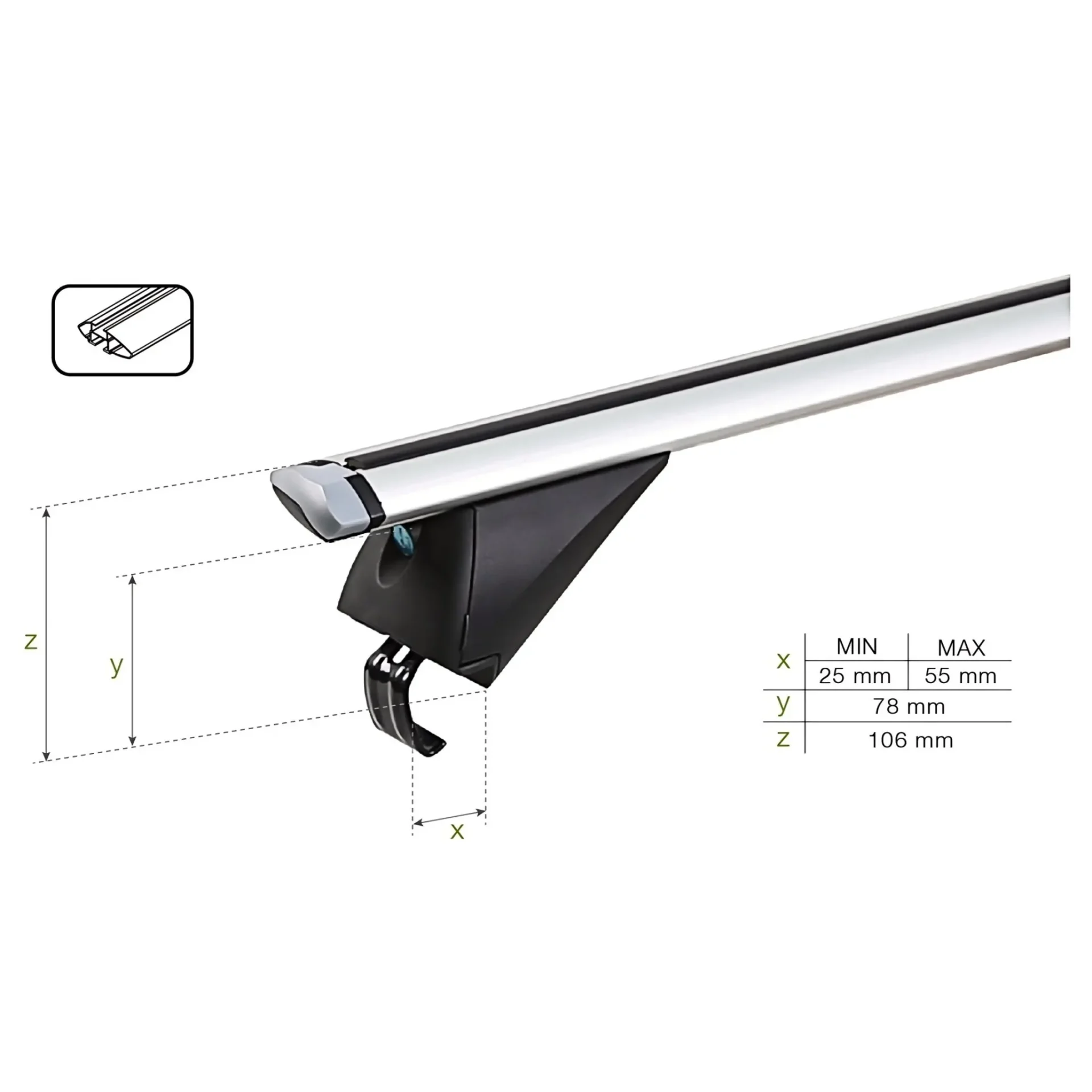

Calculated 78-106mm Vertical Clearances & Rapid Allen Key Alignment
Versatility across global vehicle fleets is unlocked via smart spatial design. The RB003C provides a calculated 78mm to 106mm vertical clearance range from the lower foot rail to the top of the aluminum crossbar, accommodating various panoramic sunroof heights. This configuration is meticulously optimized to clamp onto any standard open longitudinal factory rails measuring between 25mm and 55mm in diameter. Distributors benefit from ultra-fast installations, as users can quickly tune the tensioning bracket via a standard Allen key without dismantling any end caps.
Technical Specifications Matrix
| Industrial Metric | Technical Specification Parameters |
| Product Designation | RB003C Aerodynamic Open Rail Series |
| Compatible Rail Interface | Standard Open Roof Rails (Raised Rails / Raised Side Rails) |
| Material Build | Double-Walled Extruded Aircraft Aluminum Channels |
| Cross-Section Profile | Silent Special-Shaped Wing Profile (Ultra-Low Noise) |
| Foot Housing Composition | Weatherproof Nylon Mixed with Reinforced Fiberglass |
| Clamping Hook Engineering | Specialized Full Rubber-Coated Finish (Anti-Scratch) |
| Adjustability Mechanics | Easy Internal Allen Key Tensioning (No End Cap Removal) |
| Compatible Rail Diameter | 25 mm to 55 mm Modular Adaptability |
| Vertical Clearance Profile | 78 mm Lower Baseline to 106 mm Upper Height |
| Security Hardware | Integrated Pre-Installed Anti-Theft Key Lock Cylinders |
| T-Slot Channel Standard | Universal 24 mm * 20 mm Dimensions |
| Available Crossbar Lengths | 1200 mm / 1350 mm Options |
| Maximum Load Capacity | 90 Kg Certified Working Load Threshold |
| Safety Testing Standards | Audited According to PPP 53210B:2019 & AfPS Certified PAK Requirements |
| International Standards | Rigorously Audited to ISO/PAS 11154:2023 Regulations |
| Global Market Compliance | Fully TUV Certificate Approved |
International Quality & Compliance Verification
Worry-Free Customs & Importation Paperwork
The RB003C infrastructure is engineered to clear the strictest global safety barriers. The complete kit is fully TÜV GS certified, passing international technical performance tests under PPP 53210B:2019 and complying with environmental non-toxicity standards dictated by AfPS GS 2019:01 PAK. We provide complete regulatory documentation and testing dossiers with every wholesale container order to guarantee smooth customs clearance at major international trading ports.
