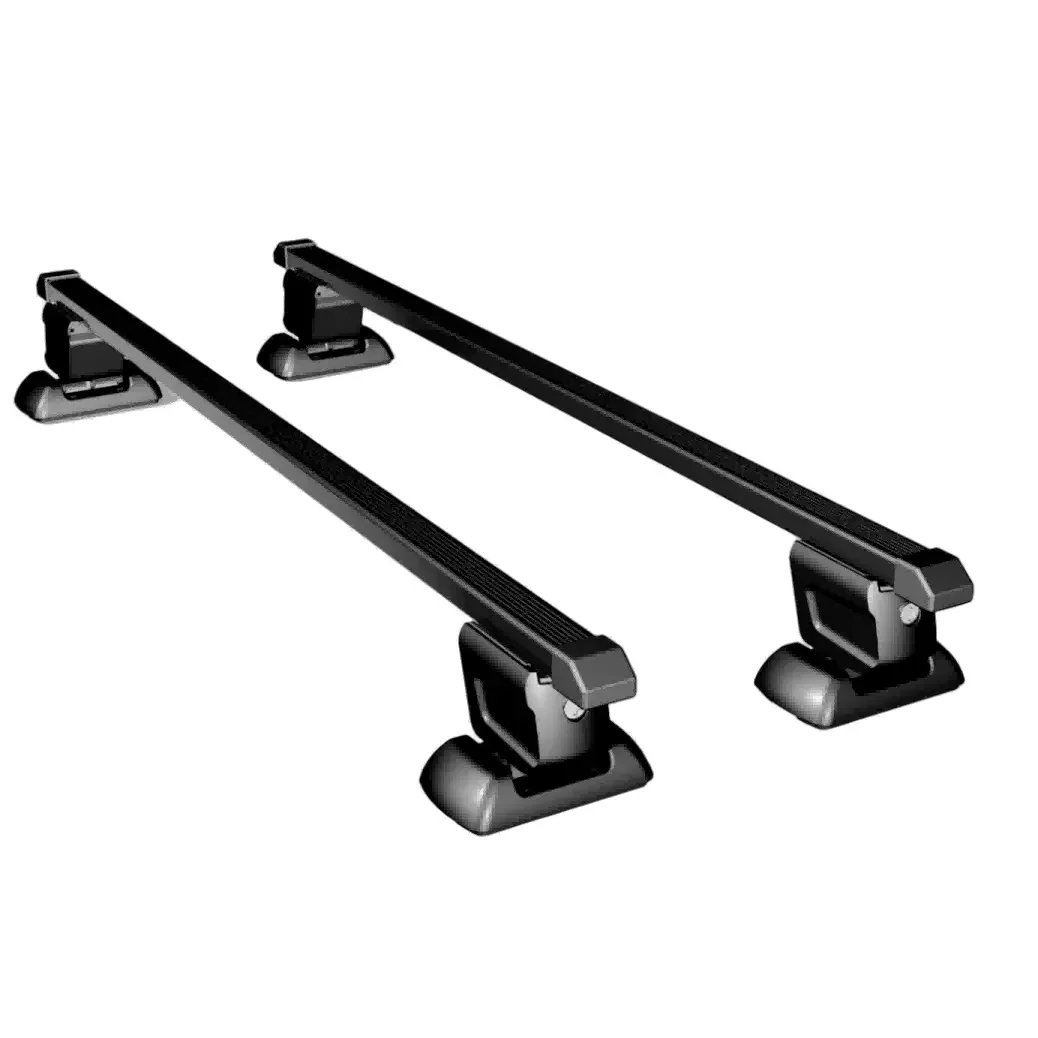

Fixed Point Steel Square Bar Roof Crossbar System (Model: RB009A)
The RB009A is a high-utility, heavy-duty vehicle roof crossbar system engineered exclusively for seamless attachment to factory vehicle fixed points, boasting a certified 90kg working load threshold to balance rooftop gear safely for international automotive accessory wholesalers and B2B procurement networks.
-
- Dedicated Fix Point Mounting:Engineered to screw directly into original vehicle factory fixed mounting points, establishing a solid mechanical anchor interface.
- Out-of-the-Box Ready:Shipped 100% pre-assembled and ready to use straight out of the box, completely eliminating labor assembly time for the end consumer.
- High-Rigidity Steel Build:Forged from premium carbon steel with a classic square cross-section to deliver heavy-duty structural resistance against heavy utility cargo loads.
- Anti-Theft Asset Security:Attachment feet are equipped with a built-in key-locking security cylinder to prevent unauthorized roadside removal or theft.
- Panoramic Sunroof Clearance:Optimized low-clearance 98mm base padding height, ensuring sufficient space for panoramic sunroof tilt and slide pathing.
Key Features & Vehicle Engineering Advantages
Heavy-Duty Square Steel & Corrosion Resistant Coating
Engineered for maximum cost-effectiveness without sacrificing structural longevity. The RB009A utilizes a classic standard square steel configuration wrapped in an industrial-grade, multi-layer corrosion-resistant coating. This advanced finish ensures the bars remain immune to severe rain, snow, and extreme UV exposure, drastically extending product service life for international distributors.

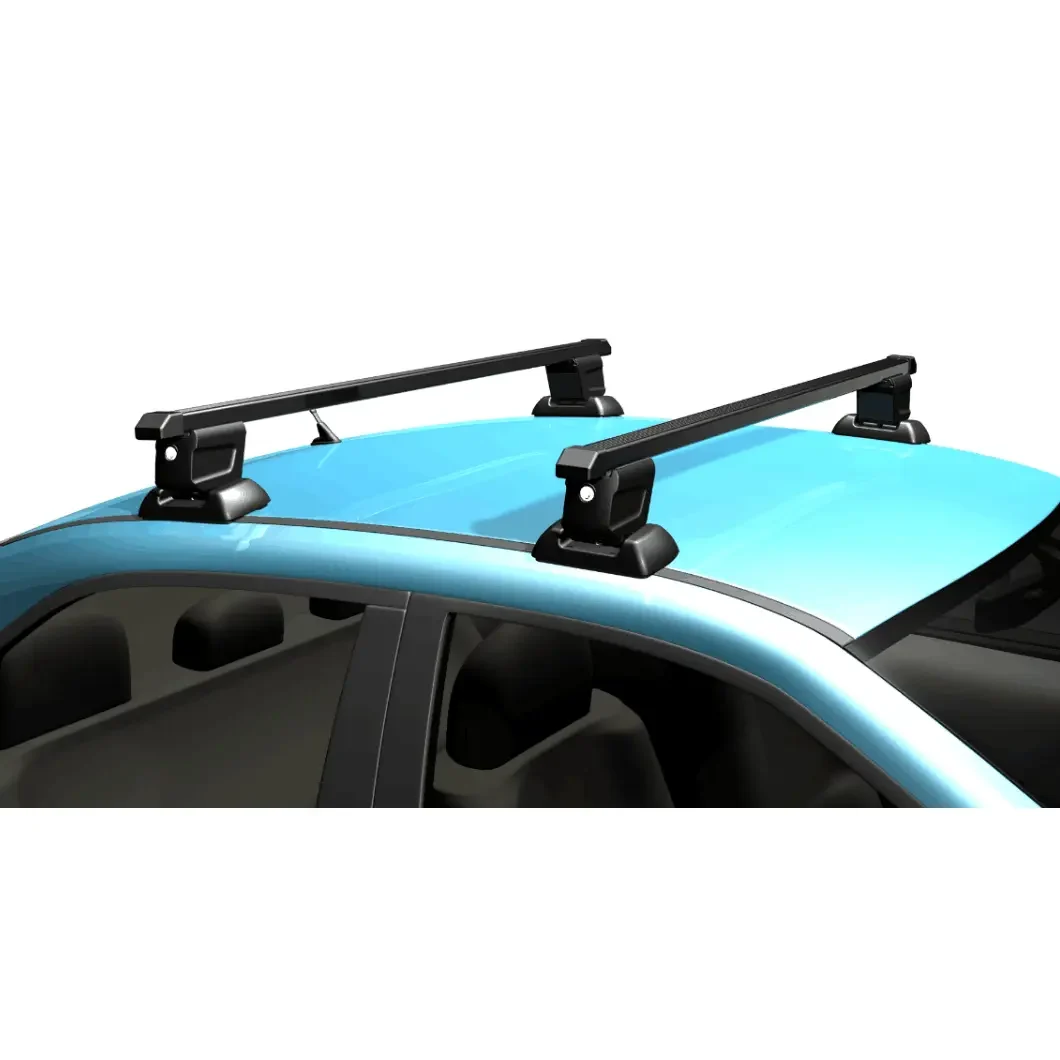

Attaining perfect transit safety requires zero structural play. The RB009A bolts seamlessly into the vehicle’s original factory fixed mounting points, forming a rock-solid mechanical bond with the chassis. Delivered 100% pre-assembled and ready to use straight out of the box, it completely eliminates end-user setup headaches and drops retail return rates to zero. An anti-theft key-locking system is pre-fitted inside the feet.

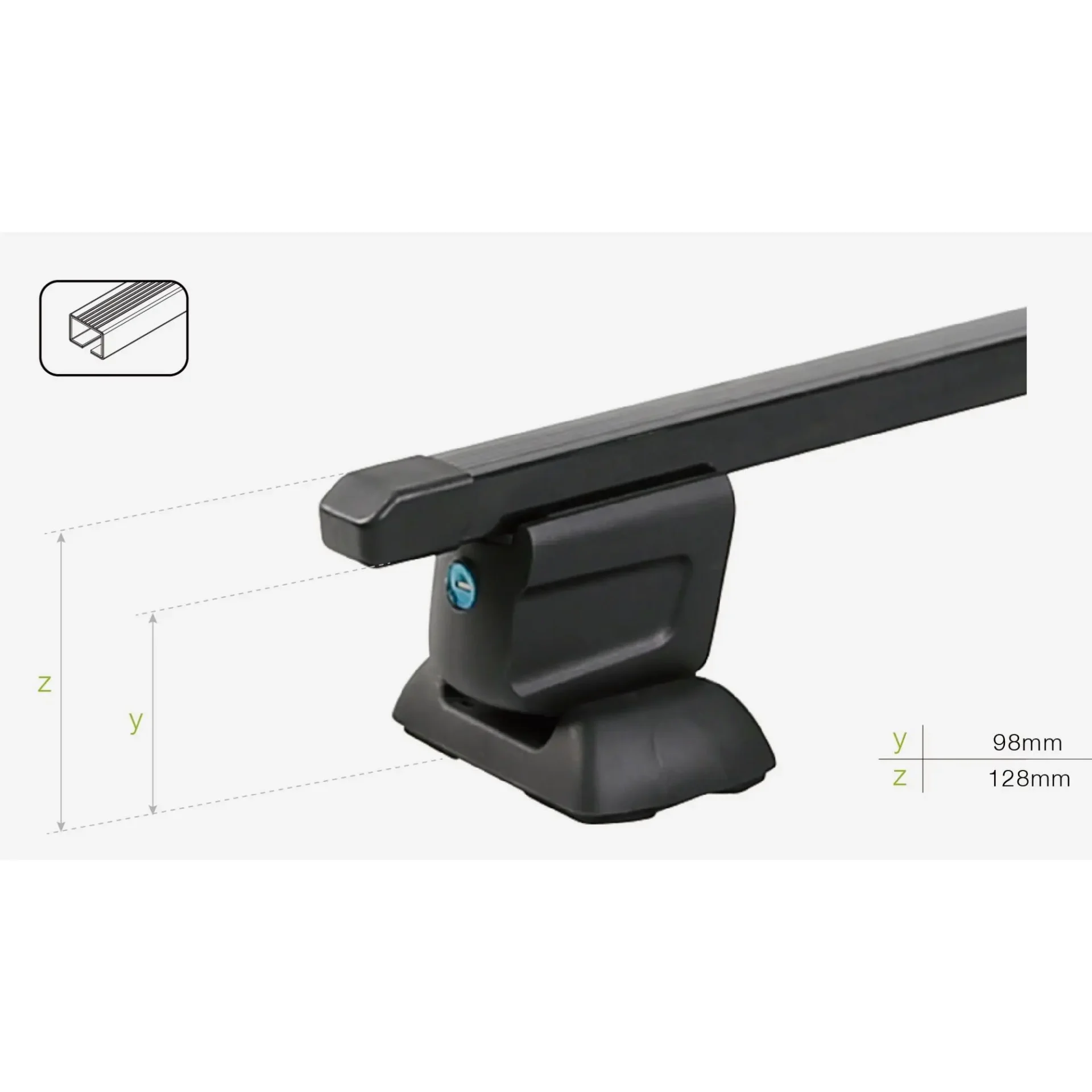

Optimised Clearance Heights for Safe Sunroof Operations
Fixed-point vehicles often suffer from tight roof space. The RB009A solves this with a calculated 98mm lower clearance height from the car roof to the bottom of the steel bar. This generous spacing provides an absolute safety guarantee for panoramic sunroof tilting and sliding, while allowing ample finger-room for mounting heavy cargo clamps. The total added profile height stands at 128mm, maintaining an excellent low-profile vertical silhouette.
Technical Specifications Matrix
| Engineering Parameter | Technical Specification Parameters |
| Product Designation | RB009A Fixed Point Series |
| Compatible Rail Interface | Dedicated Vehicle Fix Points (Fixed Mounting Points) |
| Material Build | Premium Carbon Steel with Multi-Layer Corrosion Resistance |
| Cross-Section Profile | Classic Standard Square Configuration |
| Security Hardware | Integrated Key-Locking Security Cylinder on Attachment Feet |
| Available Crossbar Lengths | 1200 mm / 1350 mm Options |
| Maximum Load Capacity | 90 Kg Certified Working Load Threshold |
| Lower Clearance Height | 98 mm (Panoramic Sunroof Optimized Space) |
| Total Added Height Profile | 128 mm Top Surface Baseline |
| Logistics Readiness | 100% Pre-Assembled and Ready to Use Out of the Box |
| International Standards | Rigorously Audited to ISO/PAS 11154:2006 Regulations |
| Global Market Compliance | Fully ECM Certificate Approved |
