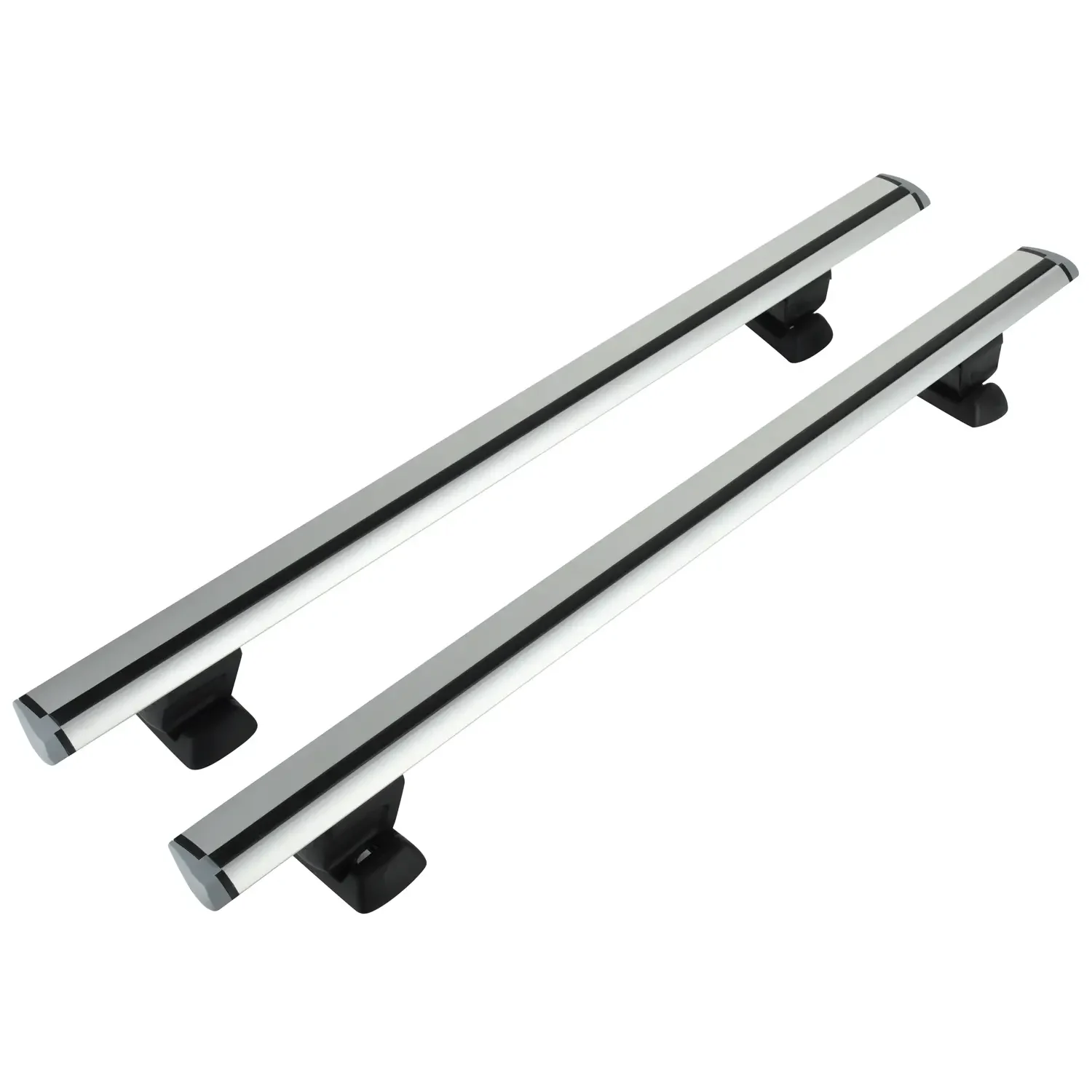

Premium Integrated Wing-Shaped Fixed Point Roof Crossbar System (Model: RB009C)
The RB009C is a flagship-tier, ultra-low profile vehicle roof crossbar system engineered for completely silent, high-load transit, boasting a certified 90kg working load threshold to balance rooftop gear safely for international automotive accessory wholesalers and B2B procurement networks.
-
- Dedicated Fix Point Mounting:Engineered to anchor directly into original vehicle factory fixed mounting points, forming a perfectly stable mechanical attachment.
- Double Walled Aero Channels:Extruded double-walled structural aircraft aluminum core engineered for peak load rigidity and maximum resistance against bending stress.
- Hinged Zero-Loss End Caps:Integrated non-removable hinged end caps that pivot open seamlessly for T-slot accessories, preventing part loss on retail networks.
- Panoramic Sunroof Clearance:Engineered with a 98mm lower clearance height, ensuring a safe vertical safety buffer for panoramic sunroof tilt and slide pathing.
- Pre-Installed Dual Security:High-security key locking assembly embedded directly onto the fiberglass-infused impact-resistant attachment feet.
Key Features & Technical Advantages
Upgraded Double-Walled Aluminum Aerodynamic Configuration
Engineered for discerning commercial markets that demand zero structural flex. The RB009C upgrades fixed-point transit via a high-grade extruded aluminum profile boasting a double-walled inner channel. This advanced aerodynamic shape slices through oncoming highway crosswinds to deliver a confident, quiet journey while easily sustaining continuous 90kg working loads.

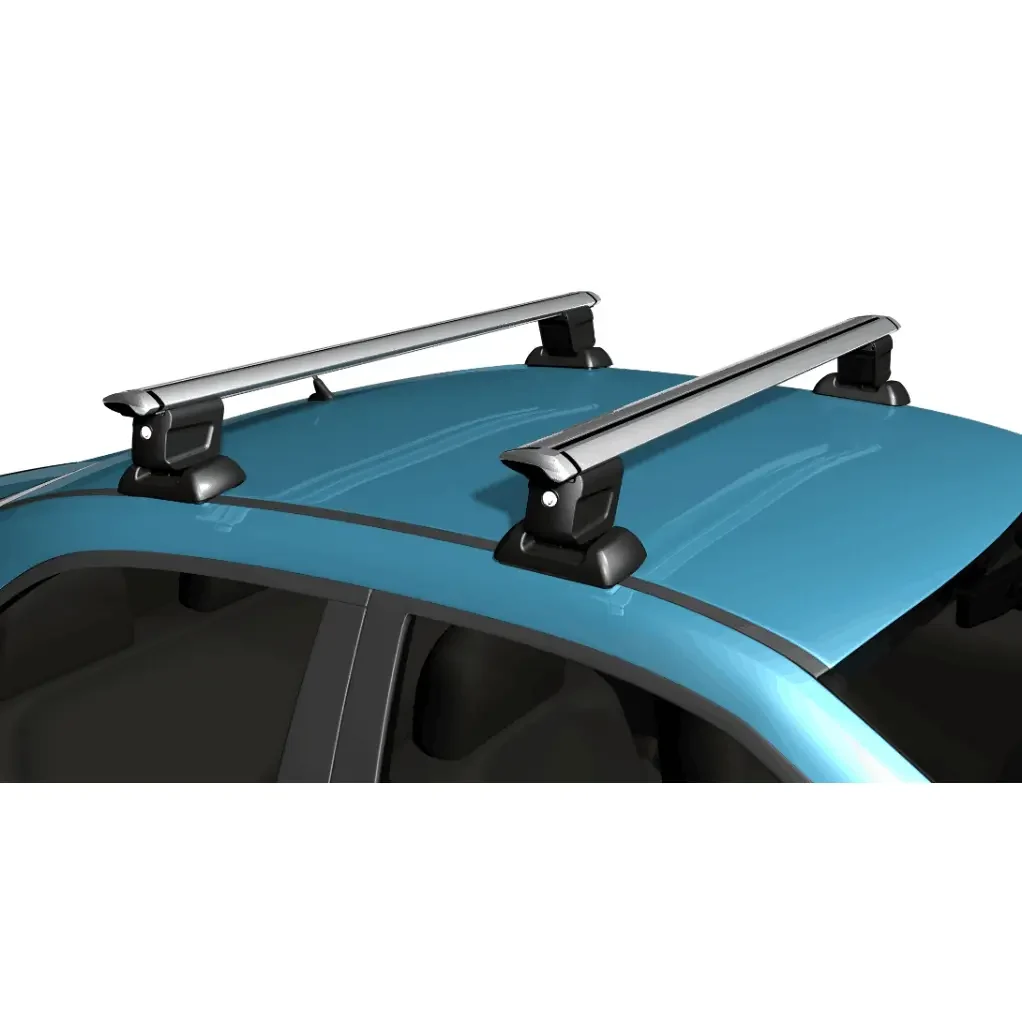

Seamless Factory Fix-Point Bonding & Real Vehicle Fitment
True road safety leaves no room for tolerance gaps. The RB009C anchors cleanly into the automotive manufacturer’s pre-drilled fixed roof threads, resulting in an unyielding mechanical connection to the vehicle chassis. Shipped with pre-installed components, it ensures an ultra-rapid fleet installation that eliminates consumer setup errors and retail return tracking.

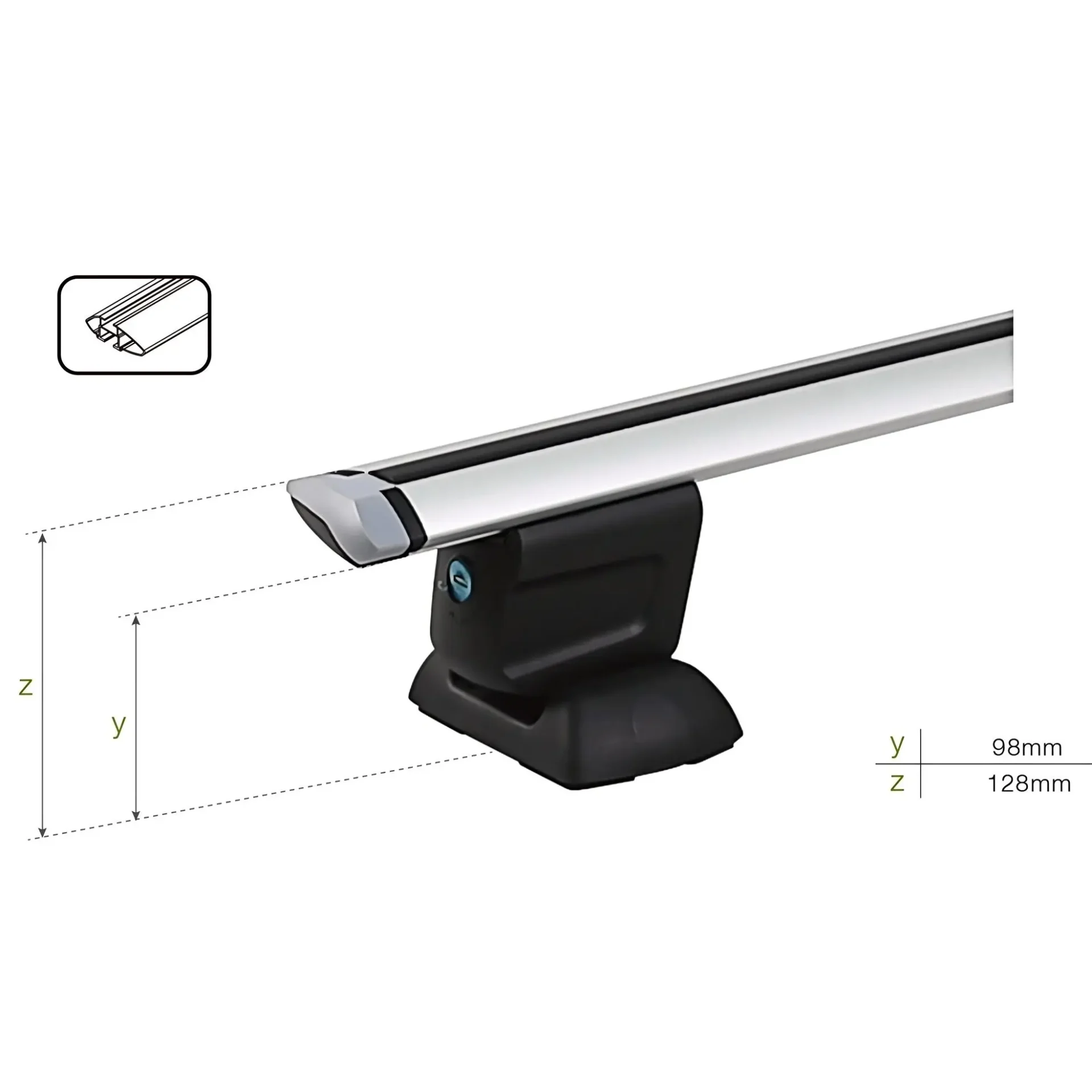

Calculated 98mm Roof Clearances for Sunroof Operational Safety
Fixed-point vehicle models often suffer from tight roof profiles. The RB009C resolves this structural conflict via a deliberate 98mm lower clearance height from the car roof surface to the crossbar base. This optimized threshold provides an absolute safety guarantee for full panoramic sunroof tilting and ventilation while offering comfortable finger-room for cargo bracket attachment. The overall top profile added height is held at an elegant 128mm.

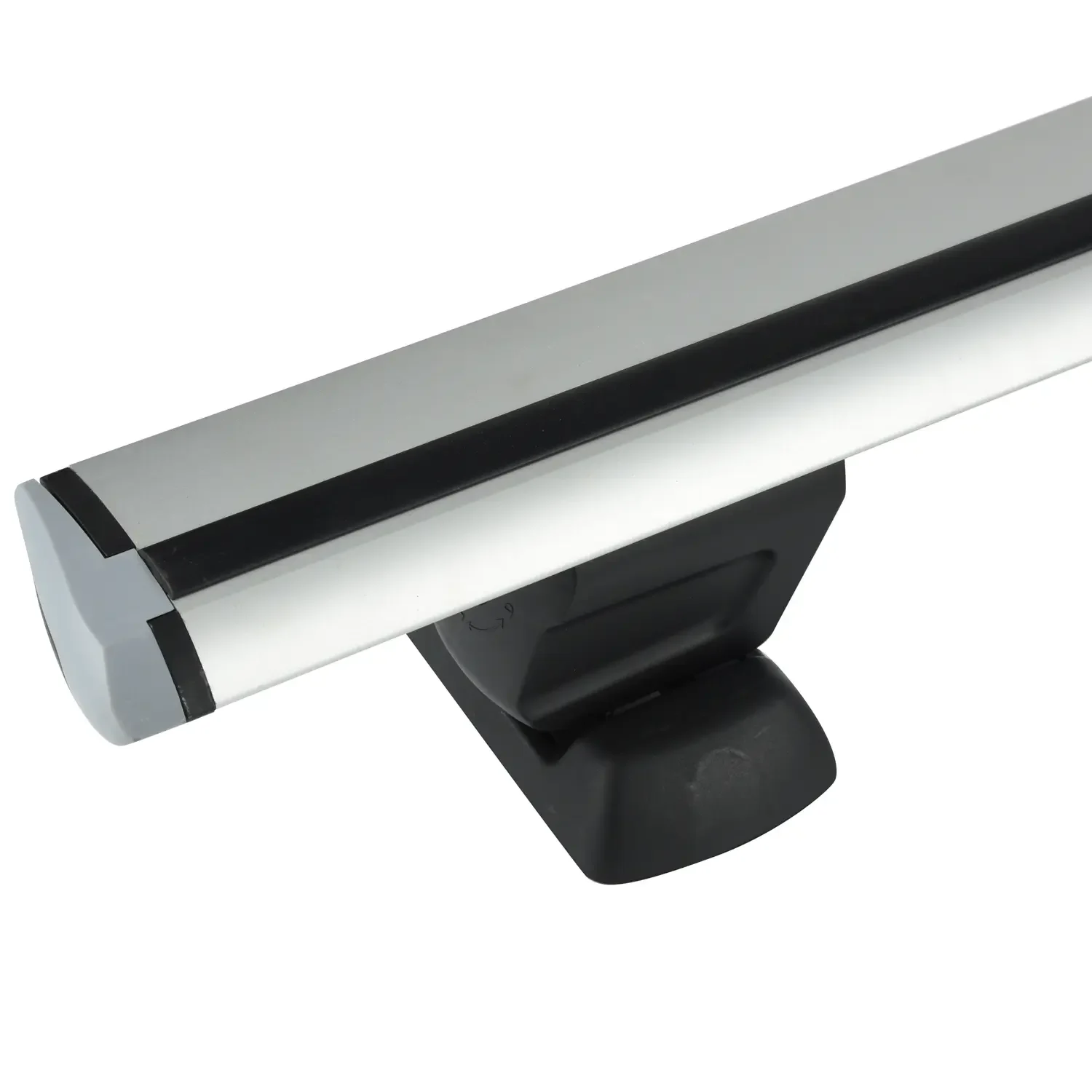

Fiberglass-Reinforced Nylon Feet with Zero-Loss Integrated End Caps
Engineered to withstand heavy commercial degradation. The attachment feet are molded from high-impact industrial nylon reinforced with premium fiberglass, guaranteeing immunity to severe UV damage and temperature swings. Seamlessly fused onto the foot is our proprietary integrated non-removable end cap system. This brilliant hinged flip-open design allows immediate access to the universal 24x20mm T-slot channel without needing to detach the caps, entirely wiping out the common hazard of parts being lost on the highway or in car washes.
Technical Specifications Matrix
| Industrial Metric | Technical Specification Parameters |
| Product Designation | RB009C Premium Fixed Point Series |
| Compatible Rail Interface | Dedicated Vehicle Fix Points (Fixed Mounting Points) |
| Material Build | Double-Walled Extruded Aircraft Aluminum Channels |
| Cross-Section Profile | Upgraded Low-Profile Aerodynamic Design |
| Foot Material | Industrial Nylon Infused with Fiberglass (High-Impact Resistant) |
| End Cap Engineering | Integrated Non-Removable Hinged End Caps (Zero-Loss Design) |
| Security Hardware | Pre-Installed Anti-Theft Key Locking System on Attachment Feet |
| Available Crossbar Lengths | 1200 mm / 1350 mm Options |
| Maximum Load Capacity | 90 Kg Certified Working Load Threshold |
| T-Slot Channel Standard | Universal 24 mm * 20 mm Dimensions |
| Lower Clearance Height | 98 mm (Panoramic Sunroof Optimized Space) |
| Total Added Height Profile | 128 mm Top Surface Baseline |
| International Standards | Rigorously Audited to ISO/PAS 11154:2006 Regulations |
| Global Market Compliance | Fully ECM Certificate Approved (CE Tested Framework) |
