Aerodynamic Aluminum Open Roof Rail Crossbars with Heavy-Duty Large Foot Casing (Model: RB007)
The RB007 is a factory-grade, heavy-duty aluminum roof rack crossbar system featuring engineered, oversized foot casings built for demanding commercial distribution. Designed natively for vehicles with longitudinal open roof rails, this fully preassembled platform provides uncompromised cargo stability, high-speed aerodynamic performance, and robust anti-theft security straight out of the box.
- Oversized Foot Casing Stability:Engineered with uniquely reinforced, large-profile feet that maximize contact surface area against vehicle rails to eliminate wobbling under heavy weight loads.
- High-Capacity Structural Rating:Built with an optimized and structurally reinforced aluminum core to ensure absolute safety for heavy rooftop tents, cargo platforms, and commercial gear.
- Tool-Free Sizing Adaptability:Features an advanced built-in telescoping leg mechanism that dynamically conforms to varied open rail diameters, expanding cross-vehicle fleet compatibility.
- Integrated Asset Protection:Outfitted with commercial-grade metal locking cores built directly into the prominent foot enclosures to prevent opportunistic theft during field deployment.
- Premium T-Slot Track Integration:Includes an expanded upper channel profile that ensures seamless, flexible compatibility with premium international carriers and transport hardware.
Key Engineering Advantages & Commercial Assets
1. Certified ISO Heavy Load Performance with Heavy-Duty Oversized Feet Real-World Stability

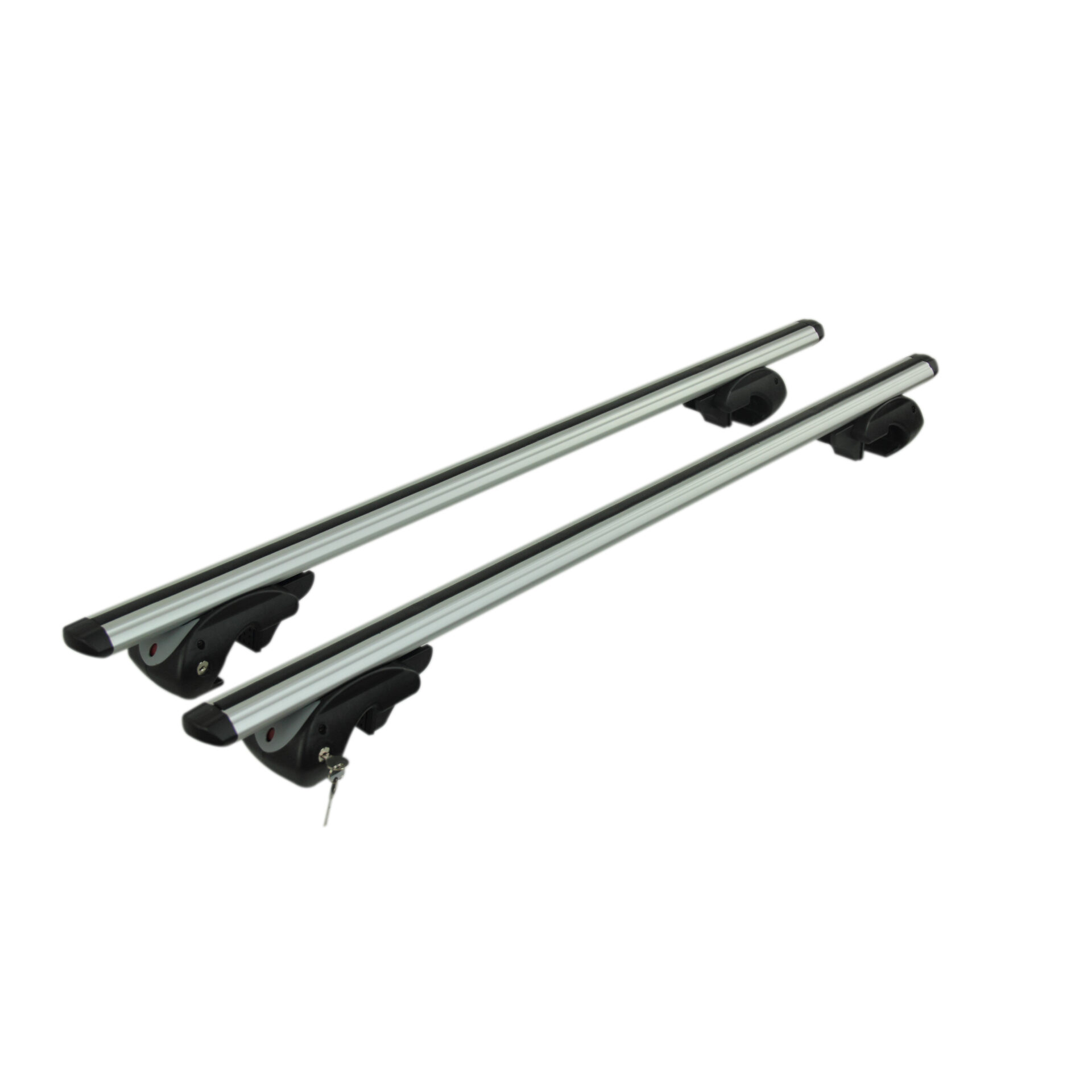

Formulated for high-volume commercial distribution, the RB007 upgrades standard consumer rack choices via an industrial-grade structural aluminum core styled into a low-drag profile, anchored by distinctively large heavy-duty foot casings. As visualized in the product layout above, these prominently oversized feet provide massive structural support and maximize clamping friction against the vehicle car chassis, completely eliminating structural warping. Rigorously tested according to the international automotive road equipment standards of ISO PAS 11154:2006, global sourcing managers can import this hardware with total peace of mind. By arriving completely preassembled and ready to use immediately out of the box, it completely slashes wholesale assembly costs.
2.Aerodynamic Longitudinal Mount Fitting with Factory-Grade Styling Aesthetics

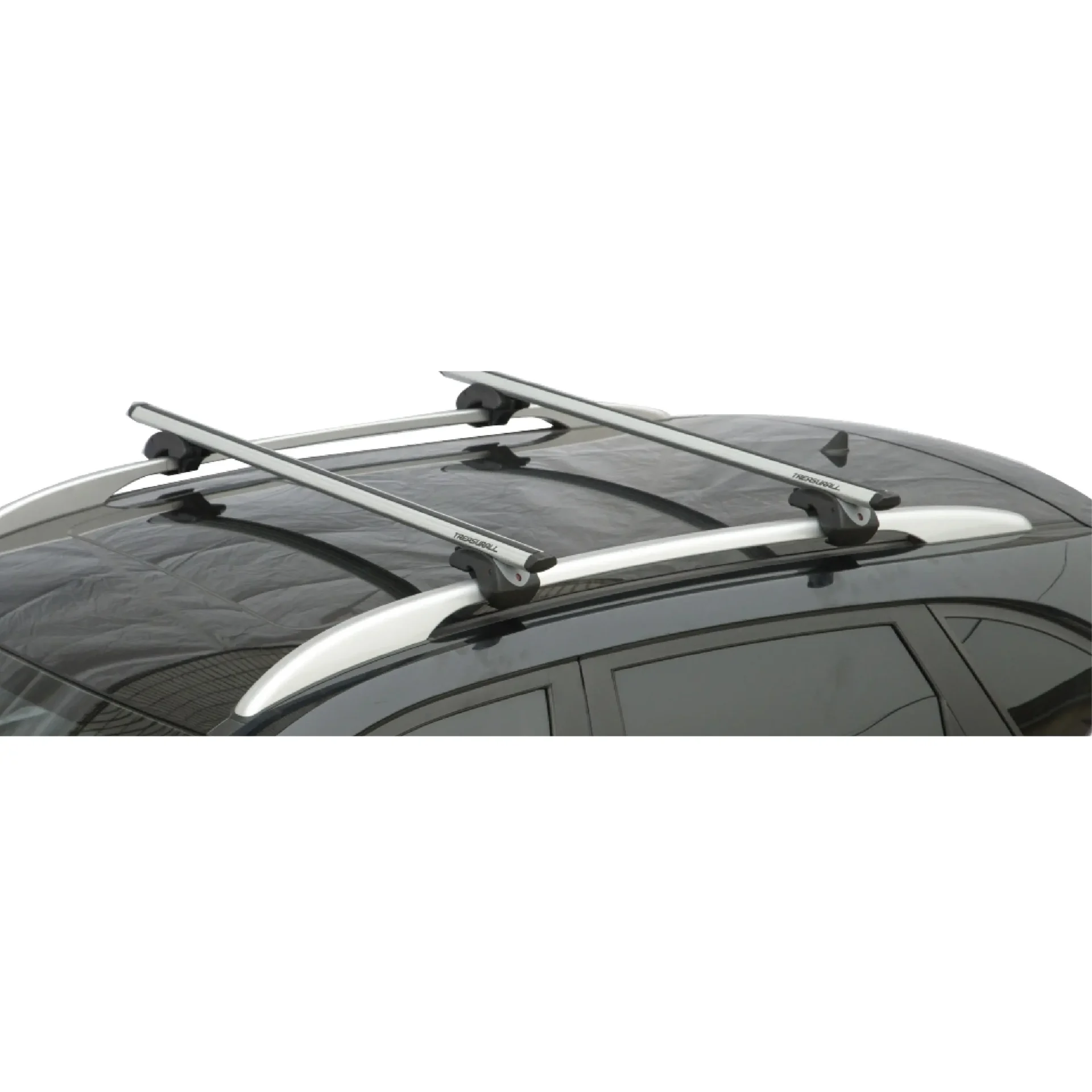

Eradicating common wind resistance and loose-tolerance problems, our proprietary aerodynamic profile allows end-users a highly silent travel experience on high-speed highways. As demonstrated in the real-world automotive installation above, the crossbars anchor firmly to the vehicle’s longitudinal open roof rails without flexing under structural tension. The clean silver and black contrast seamlessly integrates with the vehicle’s original lines, while the crisp branding marks near the bar ends reflect true factory-grade quality. This low-profile, slightly arched vehicle front-to-back fitment ensures optimal fuel efficiency while keeping heavy commercial rooftop cargo safely balanced on the car chassis.
3.Precision Geometric X/Y/Z Dimensioning and Universal 24x20mm T-Slot Alignment

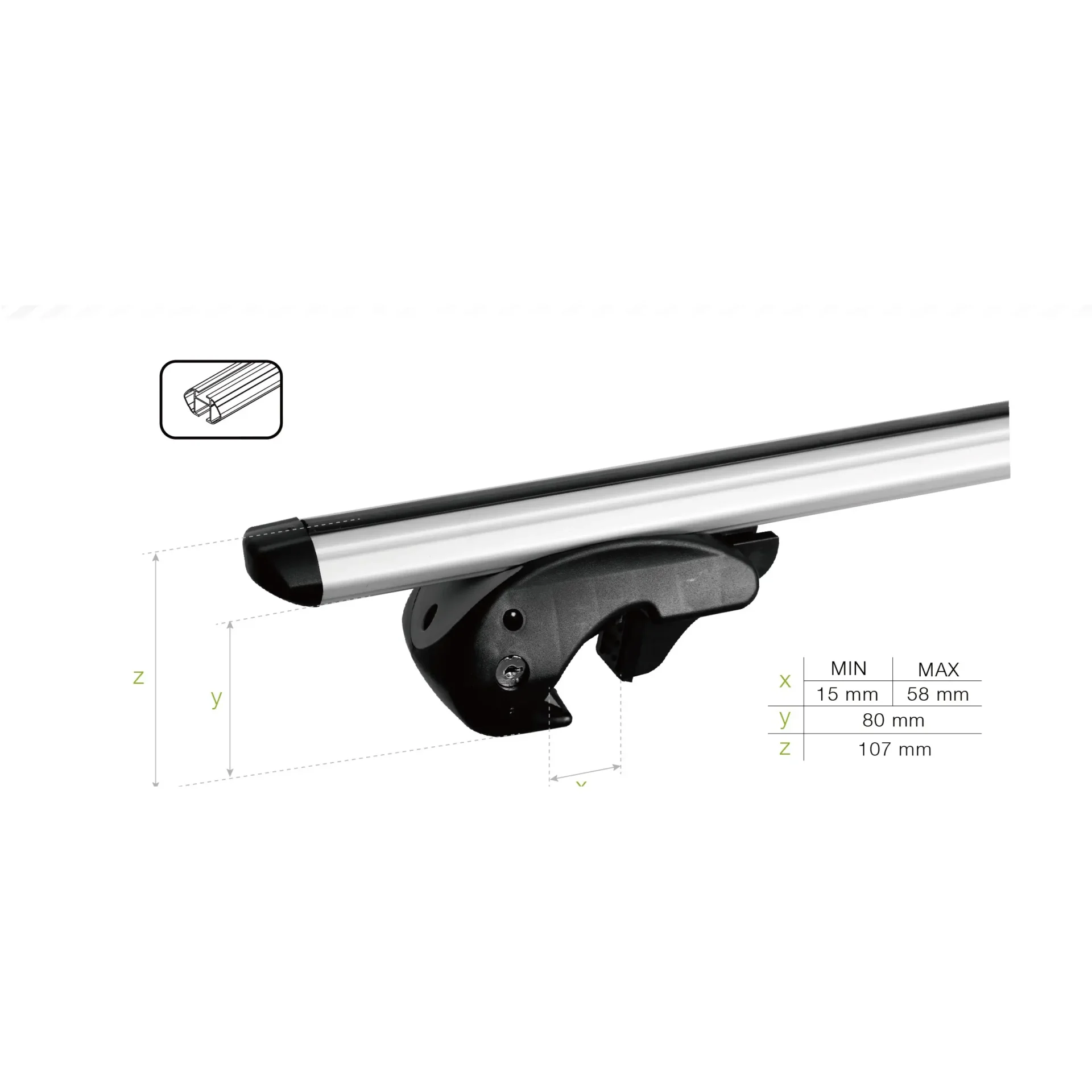

Achieving maximum fleet utility requires eliminating rigid hardware sizing constraints through precision mathematics. As visualized in the engineering technical blueprint above, the RB007 upgrades generic sizing choices by deploying adaptive telescopic foot mechanics that are dynamically verified to wrap around open longitudinal roof rail diameters (X) from an ultra-flexible 15mm up to a maximum of 58mm. This structural alignment is further reinforced by a deep 80mm inner foot clearance gap (Y) and an optimized 107mm total overhead stance profile (Z). Security is thoroughly built into the prominent foot casing housing a commercial-grade key lock, while the upper channel accommodates universal international 24×20 mm T-slot accessories flawlessly.
Technical Specifications Matrix
| Industrial Metric | Technical Specification Parameters – RB007 |
| Product Designation | RB007 Premium Heavy-Duty Series |
| Carrier Configuration Style | Universal Open Roof Rail Crossbars |
| Vehicle Rail Interface | Engineered for Open Longitudinal Mounts |
| Foot Casing Architecture | Specialized Reinforced Large Profile Feet for Ultimate Grip |
| Roof Rail Diameter Fitment Range (X) | Accommodates Rails from Minimum 15 mm to Maximum 58 mm |
| Foot Clearance Depth (Y) | Fixed 80 mm Profile |
| Total Assembly Stance Height (Z) | Fixed 107 mm Profile |
| Maximum Payload Rating | 90 kg (Heavy Duty Structural Load Support) |
| T-Slot System Tracking Size | Expanded Universal 24 mm * 20 mm Tracking Channel |
| Material Build Architecture | Premium High-Tensile Structural Aluminum with Anodized Finish |
| Available Length Profiles | Dual Options: 1200 mm / 1350 mm |
| Security Hardware | High-Protection Large Foot Locking System with Dedicated Keys |
| Testing Standards Audited | Rigorously Verified According to ISO PAS 11154:2006 Regulations |
