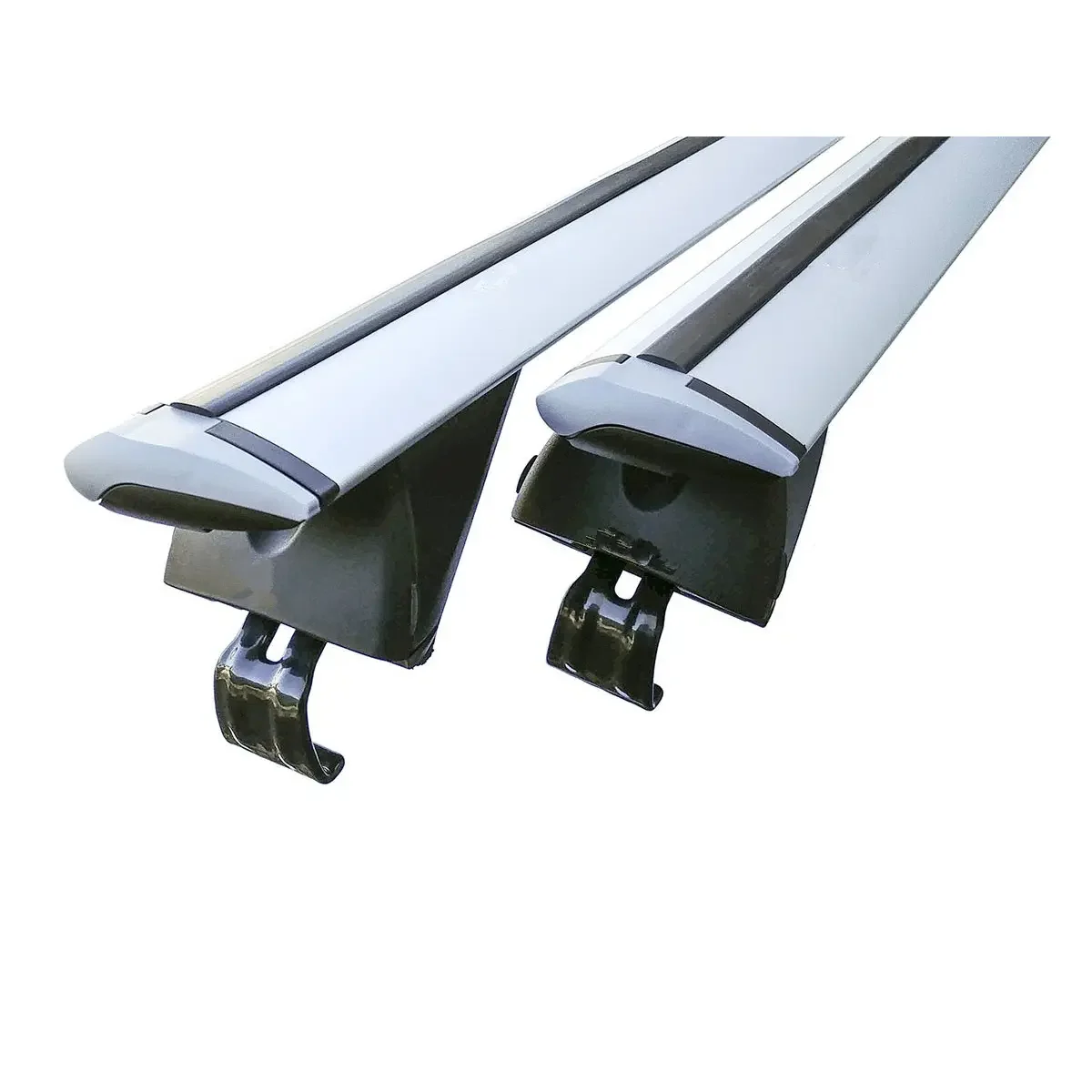

Premium Integrated Aluminum Aero Bar Roof Crossbar System for Flush Rails (Model: RB003C-1)
The RB003C-1 is a flagship-tier, fully integrated vehicle roof crossbar system engineered for silent, ultra-low profile aerodynamic transit, boasting a certified 90kg working load threshold to balance rooftop gear safely for international automotive accessory wholesalers and B2B procurement networks.
-
- Wing-Shaped Aero Profile:Upgraded ultra-low profile aerodynamic wing-shaped layout designed to minimize trailing vortices and dramatically cut high-speed wind noise.
- Double-Walled Aircraft Aluminum:Extruded double-walled structural aircraft aluminum core engineered for peak load rigidity and maximum resistance against bending stress.
- Panoramic Sunroof Clearance:Optimized low-clearance 78mm base padding height, ensuring sufficient space for standard panoramic sunroof tilt-and-slide mechanical pathing.
- Cam-Assist Tightening Bolts:Equipped with integrated cam-assist installation hardware, providing allen key precision adjustment for secure, tool-balanced torque tensioning.
- Hinged Zero-Loss End Caps:Features integrated non-removable hinged end caps that pivot open seamlessly for T-slot accessories, preventing part loss on retail networks.
Key Features & Engineering Advantages
Upgraded Double-Walled Strength & Aerodynamic Aero Bar Profile
Engineered for discerning commercial fleets and premium automotive accessory distribution markets that demand zero structural flex and maximum highway safety. The RB003C-1 features an extruded aircraft-grade aluminum profile boasting an advanced double-walled inner channel wall. Backed by an official TUV Certificate, this sleek, low-profile aerodynamic wing-shaped layout smoothly deflects oncoming highway crosswinds to deliver a confident journey while easily sustaining continuous 90kg working loads.

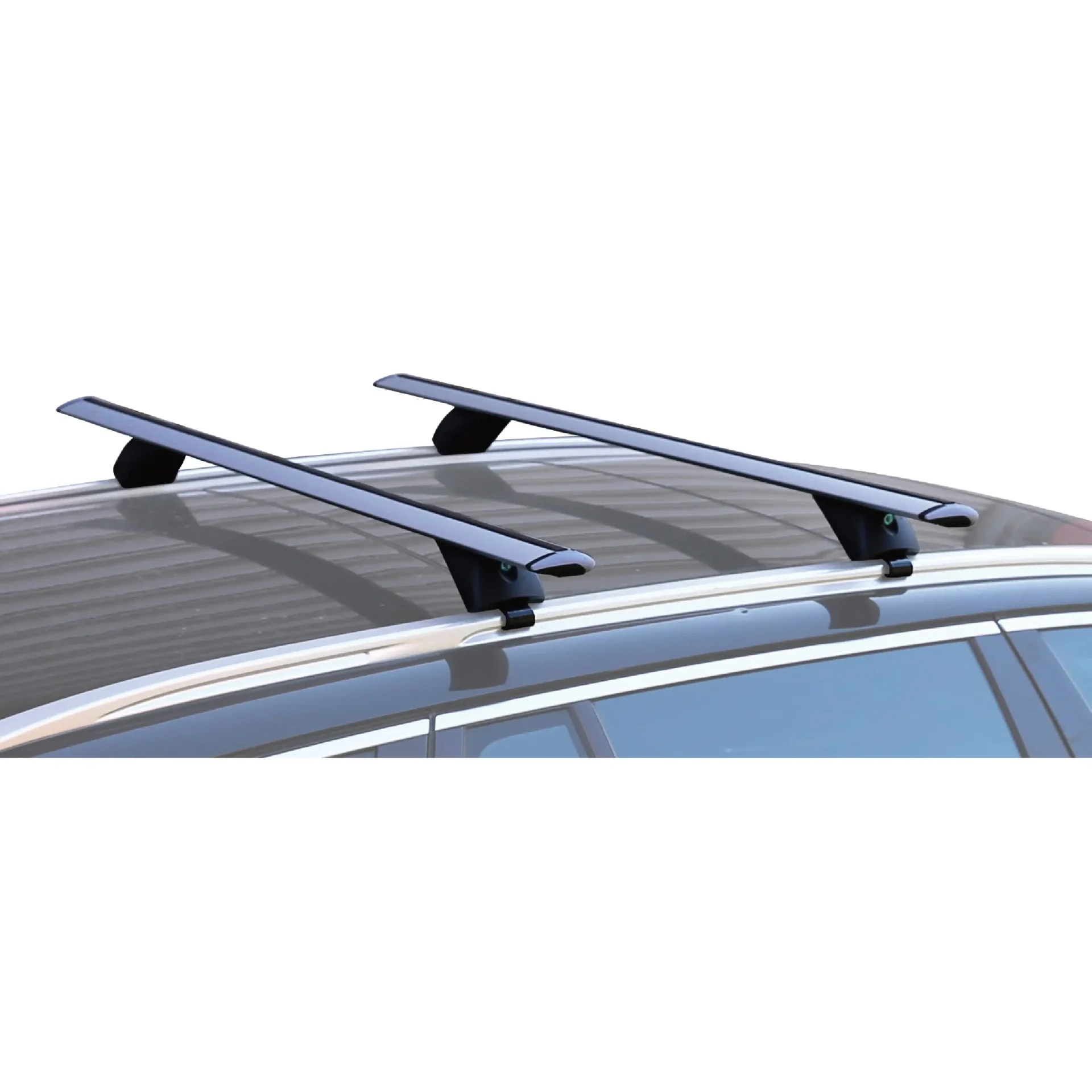

Factory Flush Rail Alignment & Real-World Vehicle Silhouette
Achieving complete transit peace of mind requires a rock-solid connection without structural play. Shipped complete with pre-assembled components, the RB003C-1 facilitates a simple, rapid installation timeline that cuts consumer setup complications and retail product return claims to zero. The integrated low-profile structural footprint blends seamlessly with premium automotive silhouettes to create a sophisticated, factory-fitted appearance.

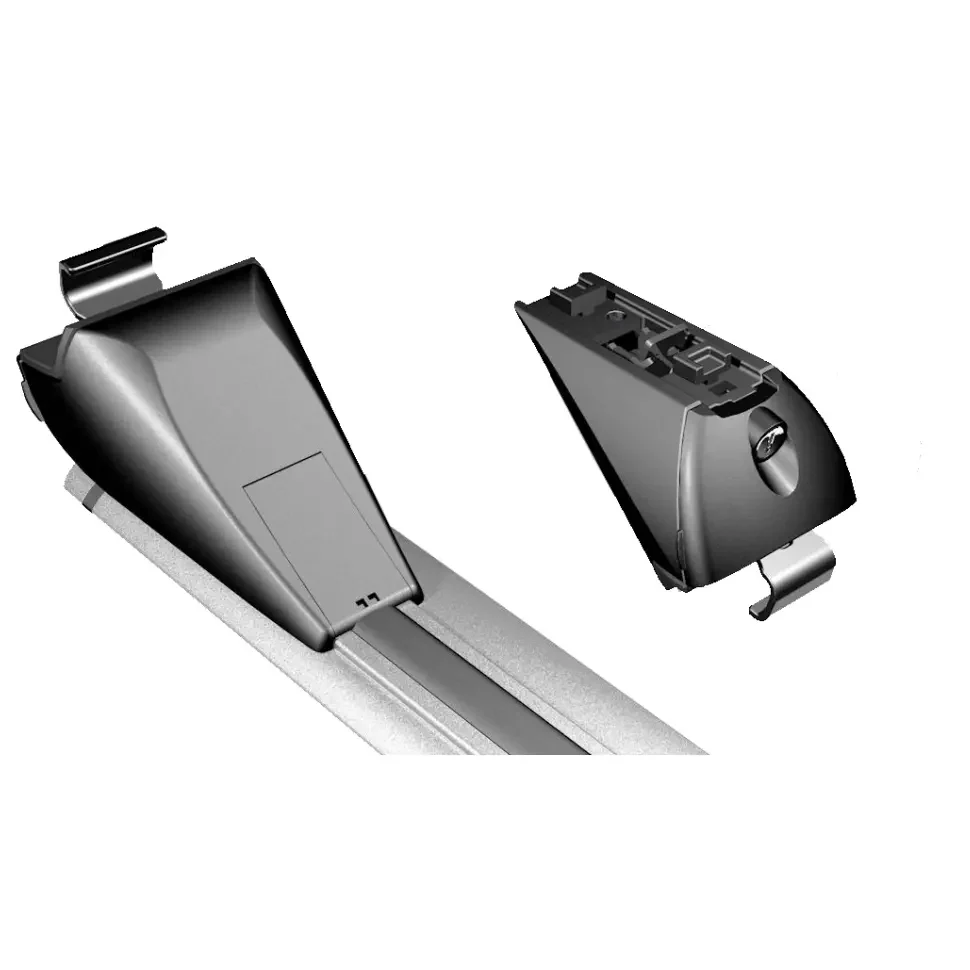

Fiberglass-Reinforced Nylon Feet & Paint-Protection Rubber Coated Hooks
Engineered to survive years of severe environmental and mechanical degradation without physical fatigue. The structural enclosed attachment feet are injection-molded from premium industrial nylon infused with high-density fiberglass, delivering complete immunity to UV breakdown and extreme weather shocks. Complementing this is our specialized rubber-coated hook technology. The metal clamping hooks undergo a proprietary rubber encapsulation process that drastically maximizes tight friction grip while ensuring the vehicle’s original side rail paint finish remains entirely free from scratches or wear.

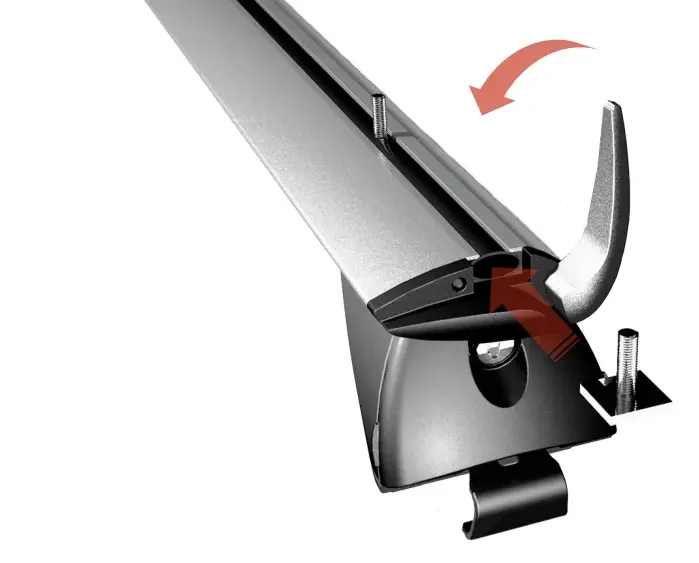

Zero-Loss Integrated End Caps for Seamless T-Slot Accessory Entry
Standard aerodynamic crossbars often suffer from lost parts and loose tolerances. The RB003C-1 completely eliminates this common retail headache through our proprietary integrated non-removable end cap system. This brilliant hinged flip-open design allows immediate, rapid access to the universal 24x20mm T-slot channel without needing to detach the caps, entirely wiping out the hazard of parts being lost in commercial car washes or on high-speed highways, while ensuring a clean factory-sealed fit.

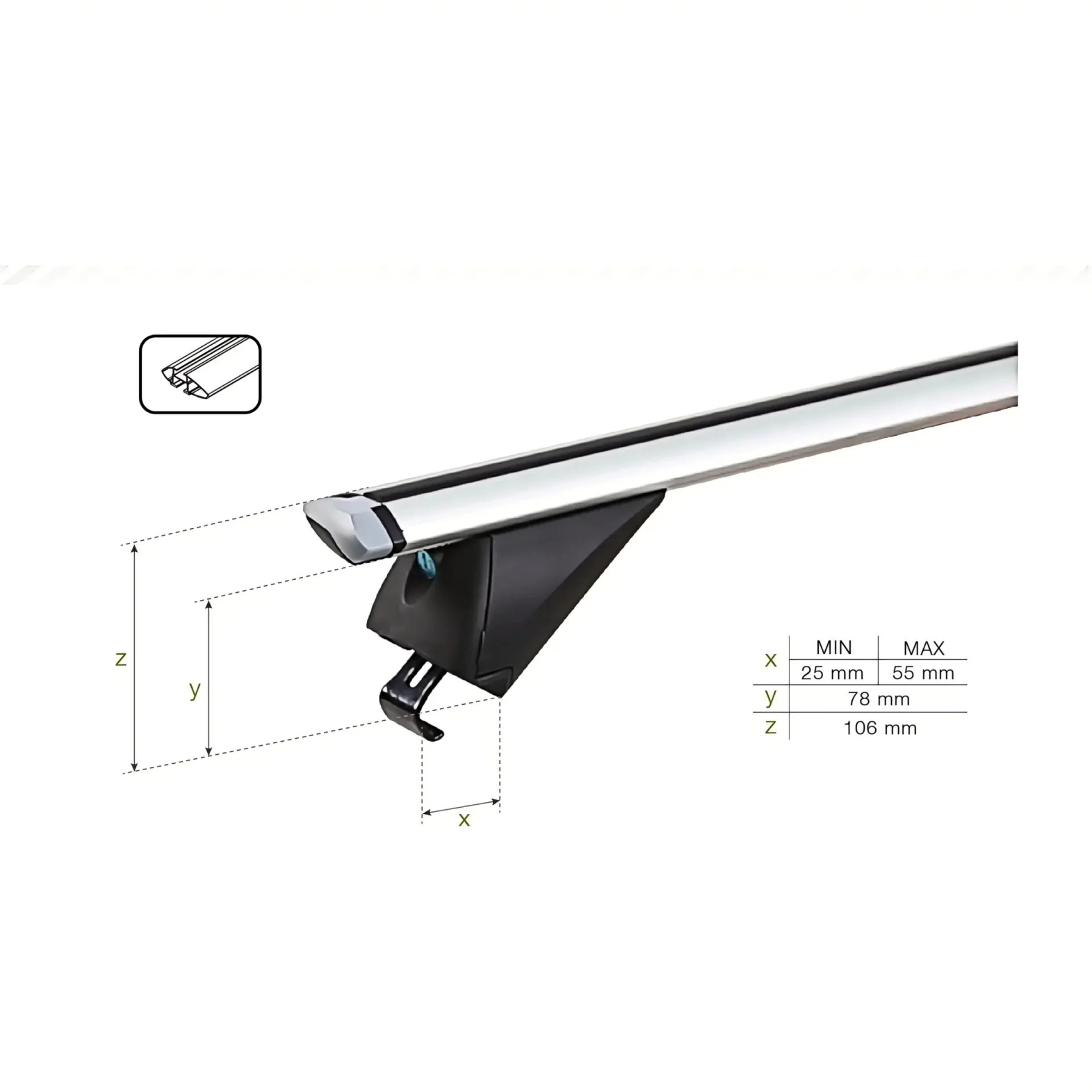

Engineered Height Clearances & Universal Clamping Dimensions (25mm-55mm)
Integrated flush vehicle models often exhibit narrow roof spacing tolerances. The RB003C-1 resolves this structural conflict via an intentional 78mm lower clearance height from the car roof surface to the crossbar base, providing an absolute safety guarantee for full panoramic sunroof tilting and ventilation. The heavy-duty jaw opens to perfectly adapt to rails measuring from 25mm to 55mm in diameter, while keeping the total added top baseline held at an elegant, low-noise 106mm.

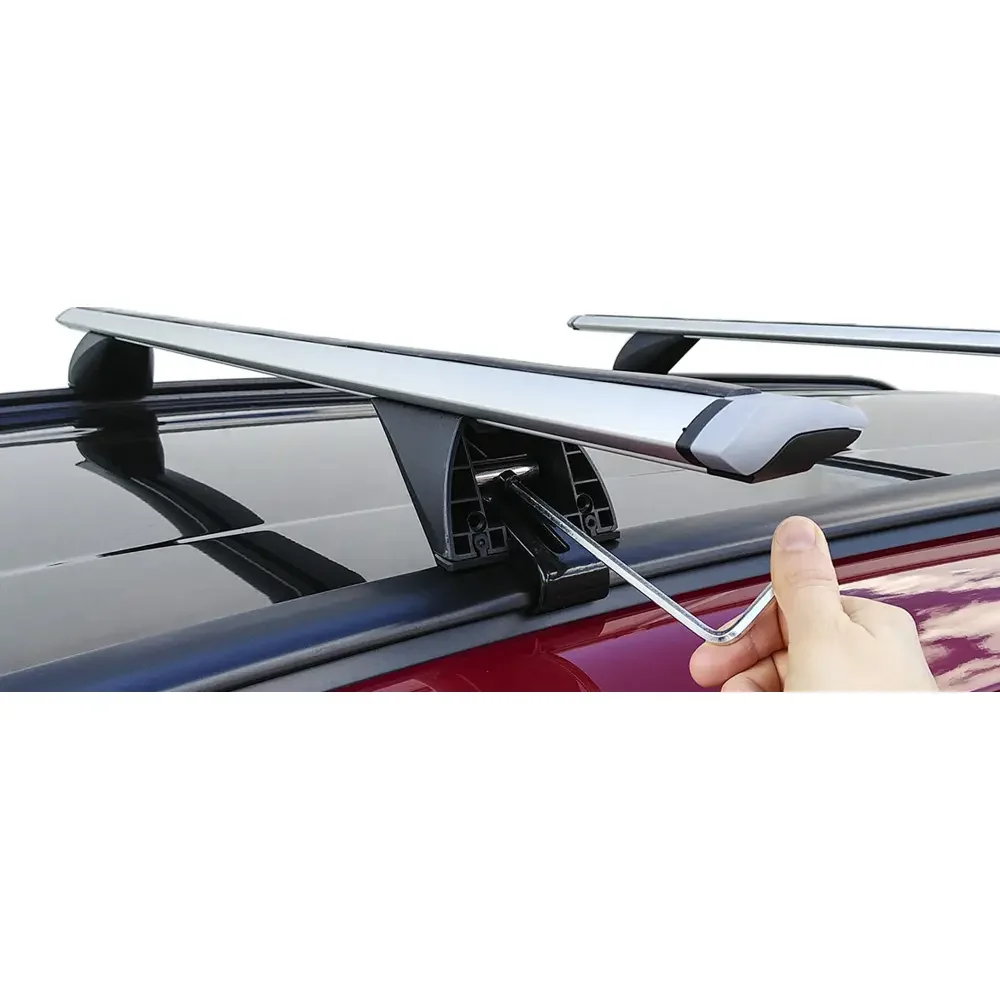

High-Torque Allen Key Adjustments for Maximum Off-Road Safety
Maximum transit safety requires uncompromising tightening torque that plastic knobs simply cannot provide. The RB003C-1 utilizes an industrial Allen Key clamping system housed safely inside the lockable foot casing. Utilizing the supplied hexagonal tool, distributors can assure volume clients a highly uniform mechanical torque that stays perfectly rigid under severe travel braking and off-road shifting stresses. Once the foot cover is locked via the anti-theft key, the screw mechanism is sealed from unauthorized tampering.
Technical Specifications Matrix
| Industrial Metric | Technical Specification Parameters |
| Product Designation | RB003C-1 Premium Flagship Series |
| Material Build | Double-Walled Structural Aircraft Aluminum |
| Bar Configuration Style | Premium Integrated Aluminum Aero Bar |
| Cross-Section Profile | Upgraded Low-Profile Aerodynamic Wing-Shaped Layout |
| Foot Material | Industrial Nylon Infused with Fiberglass (High-Impact Resistant) |
| Hook Coating Process | Anti-Friction Full Rubber-Coated Clamping Tech |
| Design Configuration | Fully Integrated Enclosed Aerodynamic Profile |
| Tightening Hardware | Integrated Cam-Assist Bolts (Allen Key Precision固定) |
| Security Hardware | Shipped with Pre-Installed Anti-Theft Key Locking System |
| Available Crossbar Lengths | 1200 mm / 1350 mm Options |
| Maximum Load Capacity | 90 Kg Certified Working Load Threshold |
| T-Slot Channel Standard | Universal 24 mm * 20 mm Dimensions |
| Compatible Rail Width | 25 mm – 55 mm (Exclusively for Closed/Flush Roof Rails) |
| Lower Clearance Height | 78 mm (Panoramic Sunroof Optimized Space) |
| Total Added Height Profile | 106 mm Top Surface Baseline (Ultra-Low Wind Noise) |
| End Cap Design | Integrated Non-Removable Hinged End Caps (Zero-Loss Design) |
| Safety Testing Standards | Audited According to PPP 53210B:2019 & AfPS Certified PAK Requirements |
| International Standards | Rigorously Audited to ISO/PAS 11154:2023 Regulations |
| Global Market Compliance | Fully TUV Certificate Approved |
