Heavy-Duty Aerodynamic Roof Crossbar System for Closed Rails (Model: RB008-1)
The RB008-1 is a heavy-duty, commercial-grade vehicle roof crossbar system engineered exclusively for seamless attachment to vehicle closed roof rails, boasting a certified 90kg working load threshold to balance cargo securely for international automotive accessory wholesalers and B2B procurement networks.
-
- Dedicated Closed Rail Fitment:Specialized mounting base engineered exclusively to clamp closed/flush roof rails safely across wide profile tracks from 36mm to 60mm.
- Anti-Whistling Technology:Features a fully enclosed lower channel profile designed specifically to prevent under-bar air turbulence and eliminate high-speed whistling noises.
- Double-Wall Aerodynamic Profile:Extruded double-wall structural aluminum core engineered for maximized load rigidity and maximum resistance against highway bending stress.
- Cam-Assist Tightening Bolt:Equipped with an integrated cam-assist installation hardware, providing elite key-precision adjustment for rapid, tool-balanced torque tensioning.
- ISO & ECM Certified Safety:Fully audited and certified according to official European ECM quality frameworks and international ISO/PAS 11154:2006 vehicle roof load regulations.
Key Features & Engineering Advantages
1.Heavy-Duty Double-Wall Aluminum & Premium Extruded Channel
Built with high-grade, non-corrosive structural aircraft aluminum, the RB008-1 features an upgraded double-wall inner channel configuration. This engineering enhancement delivers superior structural rigidity to continuously support a certified 90kg cargo weight. The sleek, low-profile aerodynamic profile smoothly deflects oncoming airflow, drastically reducing wind resistance and frustrating highway cabin noise.
2.Expanded Clamping Spectrum & High Clearance Architecture (36mm-60mm)
Specially engineered to accommodate premium and luxury vehicle segments, the clamping foot expands to securely lock onto integrated flush roof rails ranging from 36mm up to 60mm in diameter. Molded from industrial-grade nylon infused with high-density fiberglass, the feet structure provides a generous 105mm lower clearance height from the car roof line. This ensures absolute safety for panoramic sunroof operations and grants effortless spacing when mounting heavy-duty outdoor carrier accessories.
3.High-Torque Allen Key Cam-Assist Locking System
Maximum transit safety requires uncompromising tightening torque. The RB008-1 replaces unreliable tool-free plastic knobs with an industrial Allen Key cam-assist bolt system housed safely inside the lockable foot cover. Utilizing the supplied hexagonal tool, users can apply high, uniform mechanical torque to tightly clamp onto oversized flush rails. Once the foot cover is locked via the anti-theft key, the entire screw mechanism is completely sealed, denying any unauthorized tools or hex keys from tampering with your rack.
4.Anti-Whistling Noise Isolation with Enclosed Lower Channels
Standard aluminum bars often suffer from high-pitched wind whistling at highway speeds due to exposed lower adjustment tracks. The RB008-1 eliminates this common consumer complaint through an engineered fully enclosed lower channel profile. By securely sealing the central underside slot of the aluminum bar, it effectively isolates oncoming airflow and blocks turbulences from entering the bar core. This delivers a premium, ultra-quiet cabin acoustics experience, providing a powerful, high-margin marketing edge for global distributors.
Technical Specifications Matrix
| Industrial Metric | Technical Specification Parameters |
| Product Designation | RB008-1 Heavy-Duty Series |
| Compatible Rail Interface | Exclusively for Vehicle Closed Roof Rails (Flush Rails) |
| Material Build | Non-Corrosive Structural Grade Aircraft Aluminum |
| Profile Configuration | Double-Wall Aerodynamic Low-Noise Design |
| Feet Composition | Industrial Nylon + High-Density Fiberglass |
| Tightening Hardware | Integrated Cam-Assist Bolts (Allen Key Precision Adjustment) |
| Security Hardware | Key-Locking Security Cylinder Fitted on Attachment Feet |
| Available Crossbar Lengths | 1200 mm / 1350 mm Options |
| Maximum Load Capacity | 90 Kg Certified Working Load Threshold |
| T-Slot Channel Standard | Universal 24 mm * 20 mm Dimensions |

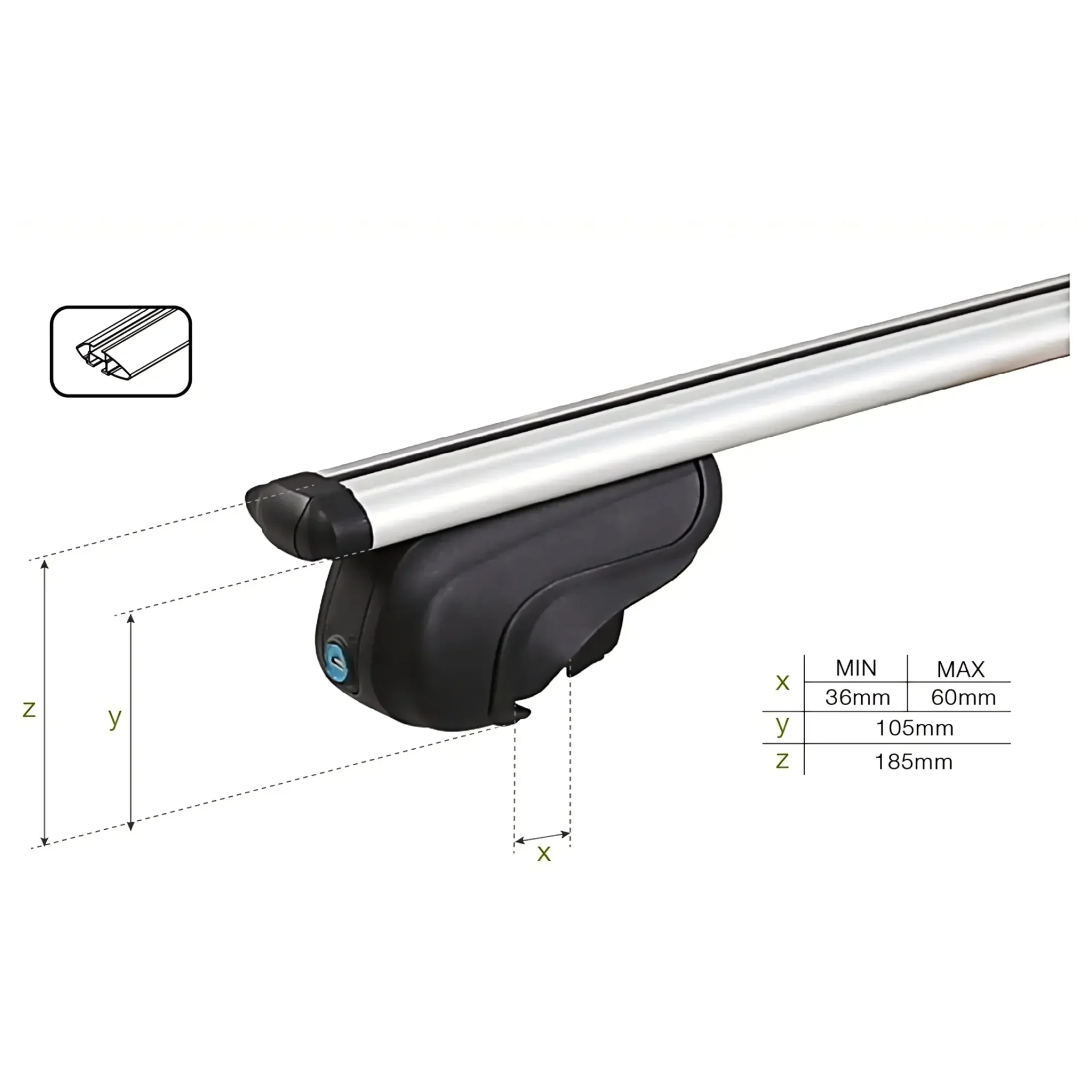

| Compatible Rail Width | Clamps Track Profiles from 36 mm to 60 mm |
| Lower Clearance Height | 105 mm (Panoramic Sunroof Optimized Space) |
| Total Added Height Profile | 185 mm Top Surface Baseline |
| Noise Reduction Tech | Fully Enclosed Lower Channel Profile (Anti-Whistling Design) |
| International Standards | Rigorously Audited to ISO/PAS 11154:2006 Regulations |
| Global Market Compliance | Fully ECM Certificate Approved |
