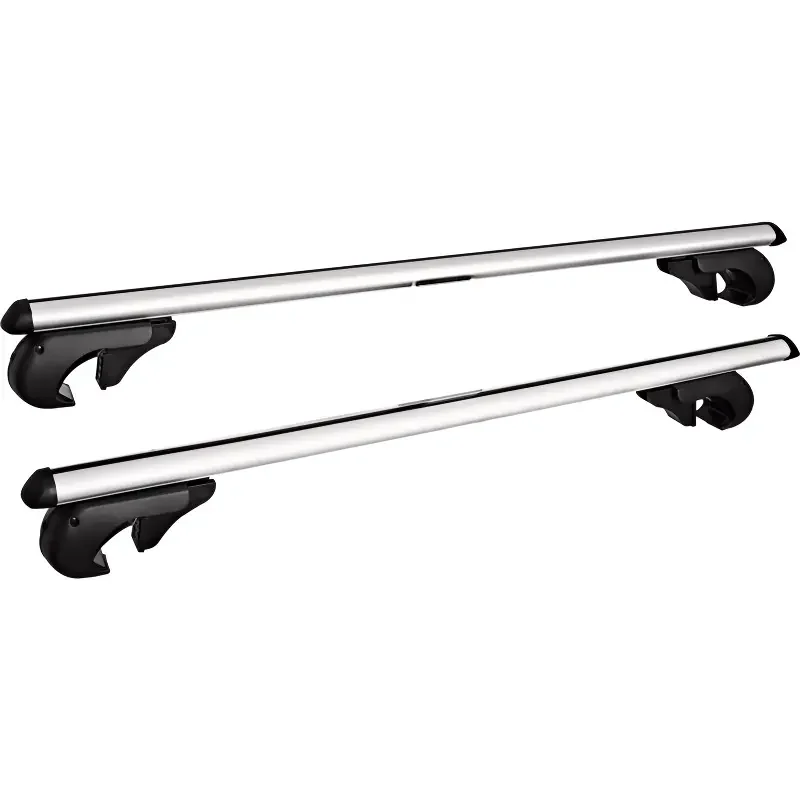

Aerodynamic Aluminum Open Roof Rail Crossbars with Universal Telescopic Feet (Model: RB004)
The RB004 is a commercial-grade, heavy-duty aluminum roof rack crossbar system engineered for universal open roof rails. This preassembled platform combines aerodynamic performance, high load capacity, and anti-theft security to satisfy the strict logistics demands of global automotive sourcing networks and fleet distributors.
- Certified 90kg Payload:Structurally reinforced heavy-duty framework to ensure absolute safety for rooftop tents, heavy cargo boxes, and sporting gear.
- Universal Telescopic Fit:Features an innovative built-in telescoping leg mechanism that dynamically adapts to fit varied open roof rails (35mm–60mm).
- Integrated Anti-Theft Lock:Every crossbar foot incorporates a heavy-duty, key-accessed locking core guaranteeing absolute asset protection.
- Standard 13x13mm T-Slot:Designed with an upper aerodynamic tracking channel that enables seamless integration of universal international carriers and transport hardware.
- Instant Out-of-the-Box Deployment:Arrives fully preassembled to eliminate tedious field labor costs and accelerate deployment readiness.
Key Engineering Advantages & Commercial Assets
1. Certified ISO Heavy Load Performance with Out-of-the-Box Readiness
Formulated for high-volume commercial distribution, the RB004 upgrades standard consumer rack choices via an industrial-grade structural aluminum core styled into a low-drag profile. Rigorously tested according to the international automotive road equipment standards of ISO PAS 11154:2006, global sourcing managers can import this transport hardware with total peace of mind. By arriving completely preassembled and ready to use immediately out of the box, it completely slashes wholesale assembly costs and accelerates time-to-market.
2.Aerodynamic Longitudinal Mount Fitting with Zero Lateral Flexing
Eradicating common wind resistance and loose-tolerance problems, our proprietary aerodynamic profile allows end-users a highly silent travel experience on high-speed highways. As demonstrated in the real-world automotive application above, the crossbars anchor firmly to the vehicle’s structural roof layout without warping under high load tension. This pristine vehicle rear-to-front fitment ensures optimal fuel efficiency while keeping heavy commercial rooftop cargo safely balanced on the vehicle chassis.
3.Rigorous Geometric X/Y/Z Dimensioning and Secured Key Lock Infrastructure
Achieving maximum fleet utility requires eliminating rigid hardware sizing constraints through precision mathematics. As visualized in the engineering blueprint above, the RB004 utilizing adaptive telescopic foot engineering that is dynamically verified to wrap around open longitudinal roof rails with a diameter profile (X) from 35mm up to 60mm, backed by a robust 78mm foot clearance height (Y) and a 110mm total overhead lift stance (Z). Security is thoroughly reinforced by integrated metal locking mechanisms built inside the foot casing. This clever combination of an agile 13×13 mm T-slot interface, flexible sizing, and premium key-controlled theft protection makes it an incredibly versatile asset for international retailers.
Technical Specifications Matrix
| Industrial Metric | Technical Specification Parameters – RB004 |
| Product Designation | RB004 Heavy-Duty Series |
| Carrier Configuration Style | Universal Open Roof Rail Crossbars |
| Vehicle Rail Interface | Engineered for Open Longitudinal Mounts |
| Roof Rail Diameter Fitment (X) | Accommodates Rails from Minimum 35 mm to Maximum 60 mm |
| Maximum Payload Rating | 90 kg (Heavy Duty Structural Load Support) |
| T-Slot System Tracking Size | Aerodynamic 13 mm * 13 mm Tracking Channel |
| Material Build Architecture | Premium High-Tensile Structural Aluminum |
| Available Length Profiles | Dual Options: 1200 mm / 1350 mm |
| Security Hardware | Integrated Casing Foot Protected against Theft by Dedicated Keys |
| Testing Standards Audited | Rigorously Verified According to ISO PAS 11154:2006 Regulations |
